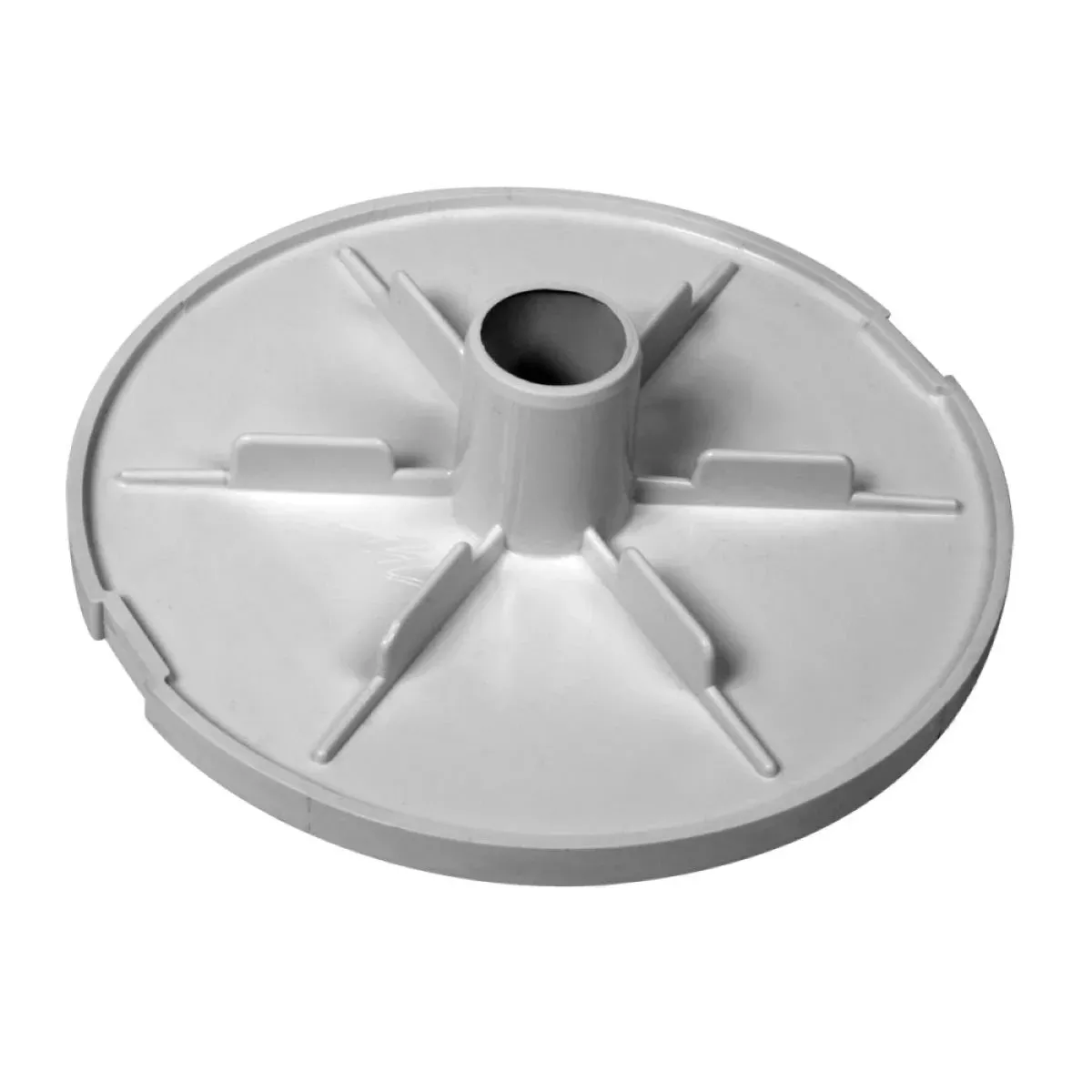

Waterway 519-6480-R1 Renegade Skimmer Vacuum Plate – Snap-In Style (White)
The Waterway 519-6480-R1 is a replacement snap-in style skimmer vacuum plate for select Waterway Renegade in-ground (gunite) skimmers. This plate sits on top of the skimmer basket opening and creates a sealed suction interface so you can connect a manual vacuum hose to the skimmer without removing the basket.
Key Features
- Snap-in installation for fast placement and removal during vacuuming
- Designed for Waterway Renegade in-ground skimmers (gunite applications)
- Helps route suction through the vacuum hose while the skimmer basket continues catching debris
- White finish to match common Renegade skimmer components
- Newer-style vacuum plate commonly used on Renegade skimmers manufactured after March 2014
Specifications
- Part Number: 519-6480-R1
- Type: Skimmer vacuum plate (snap-in)
- Color: White
- Top Outside Dimensions: 4-1/8″ x 5-1/8″
- Bottom Outside Dimensions: 3-7/8″ x 4-3/8″
- Inside Opening (I.D.): 3-1/4″ x 4-1/4″
- Overall Height: 3-1/2″
Compatibility Notes
- Fits select Waterway Renegade skimmers using the snap-in vacuum plate style.
- If you are replacing an older twist/lock style plate, verify your skimmer version and compare the plate shape and measurements.
- Best practice: match by part number 519-6480-R1 and confirm dimensions against your existing plate/skimmer opening.
How It’s Used
- Place the vacuum plate onto/into the skimmer opening (per your skimmer’s design).
- Attach your vacuum hose to the plate’s opening and prime the hose before turning on the pump.
- Vacuum as normal while the skimmer basket helps trap larger debris.
Related Products
- Waterway Renegade Skimmer Basket
- Waterway Renegade Weir Door (Flapper)
- Manual Pool Vacuum Hoses
- Telescopic Pool Poles
- Manual Vacuum Heads
- Skimmer Socks / Fine Debris Nets
Maintenance Tips
- Rinse the vacuum plate after use to remove sand and grit that can cause poor fit or wear.
- If the plate is hard to seat/remove, inspect for warping or debris buildup around the skimmer opening.
- Keep the skimmer basket clean before vacuuming to maintain strong suction and reduce pump strain.
- Store the plate out of direct sun when not in use to reduce UV-related brittleness over time.
