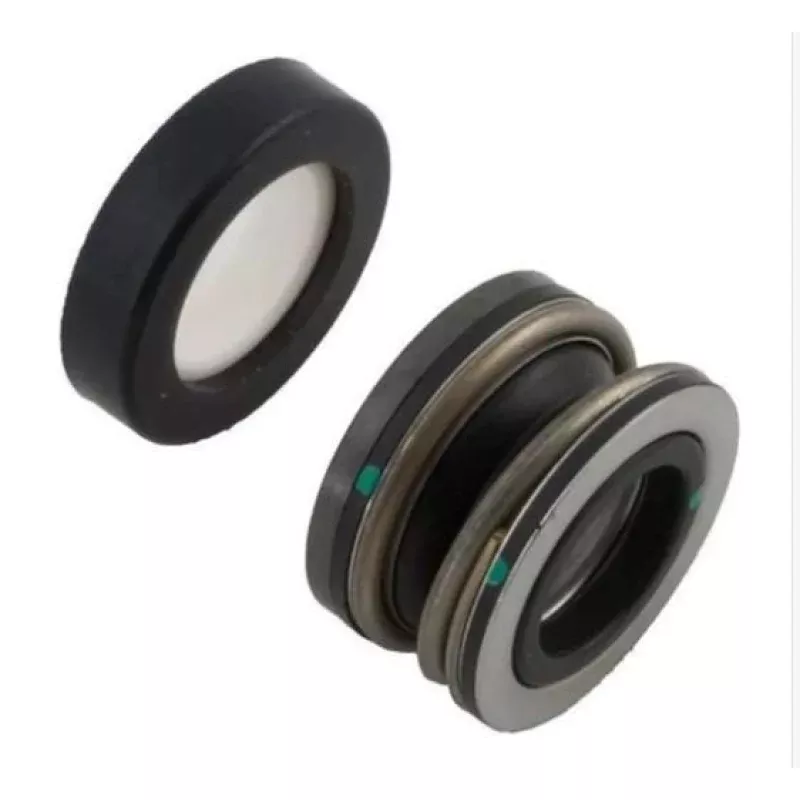

USSeal Shaft Seal ModelPS201VCMS ( Shaft, Viton Oring, Ozone/Salt Service)
The USSeal PS201VCMS is a premium mechanical seal assembly engineered for inch pump shafts and specifically designed for demanding ozone and saltwater environments.
Key Features:
- Fits inch shaft diameter dropin replacement for PS201/PS851 style seals
- Viton elastomer (CMS version) for superior chemical resistance in ozone and salt systems
- Heavyduty carbon/graphite stationary ring and stainlesssteel rotating element for long life
- Compatible with a wide range of pool/spa pumps including StaRite, Pentair, and other 56frame motor setups
Technical Specifications:
- Model / SKU: PS201VCMS
- Shaft Size: (0.750) standard shaft diameter
- Elastomer: Viton (CMS version) rated for ozone and salt applications
- Stationary Ring: Carbon/Graphite; Rotating Ring: Ceramic or comparable OEM spec
- Application: Use in pool and spa pump wet ends exposed to ozone, salt, or harsh chlorine environments
- Shipping Weight: Approx. 0.120.5lb depending on packaging
Maintenance Tip: Whenever you replace a motor or pump wetend in a salt or ozone system, install this upgraded seal. Clean the shaft and seal cavity thoroughly, apply a thin film of poolsafe silicone grease, and ensure proper seating. After installation, monitor for leaks during the first hour of operation. If no leakage occurs, run the system for 24hours and recheck torque and seal condition.
SKU: PS-201V-CMS
