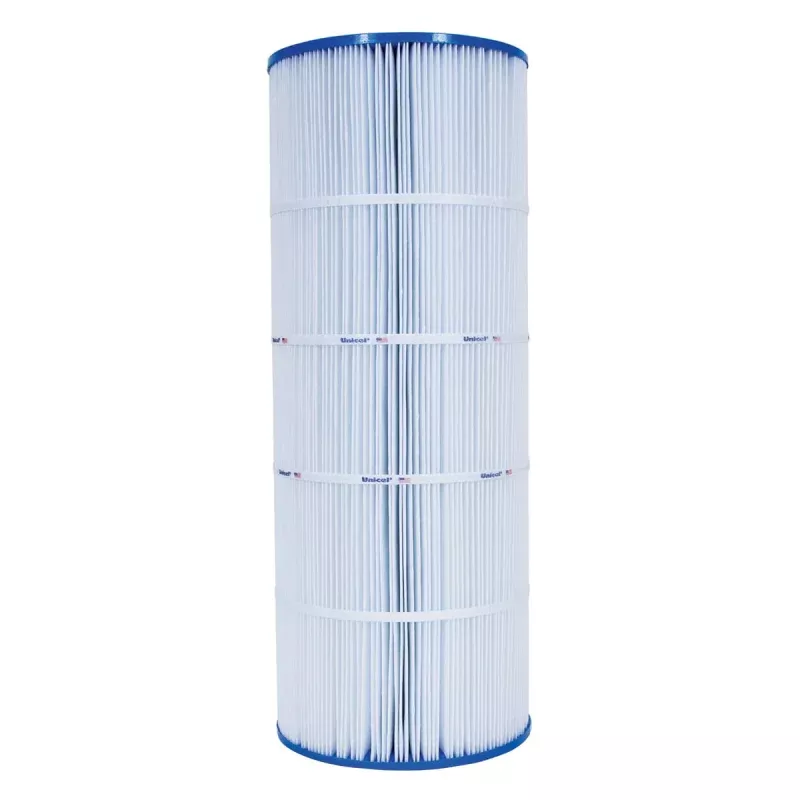

The Unicel C-8410 is an 8000 Series 100 sq. ft. replacement filter cartridge precision-engineered for the Jandy CS100 single-cartridge pool filter. Built with heavy-duty 4 oz. Reemay 2040 polyester media and 143 pleats, it delivers thorough particle capture and extended service life. Both ends are open with molded gaskets drop-in ready for the CS100 housing without modification.
Specifications
| Filter Area | 100 sq. ft. |
| Length | 23 5/16″ |
| Outer Diameter | 8 15/16″ |
| Top Inner Diameter | 4″ |
| Bottom Inner Diameter | 4″ |
| Material | 4 oz. Reemay 2040 |
| Pleat Count | 143 |
| Top Cap: open w/ molded gasket | Bottom Cap: open w/ molded gasket |
Note from Unicel: OEM original has grey end caps.
Fits into:
| OEM Brand | Product Name | Part Number | Notes |
| Jandy | CS100 | R0462200 | Single cartridge required |
(This is not an exhaustive list.)
Also known as: C8410
