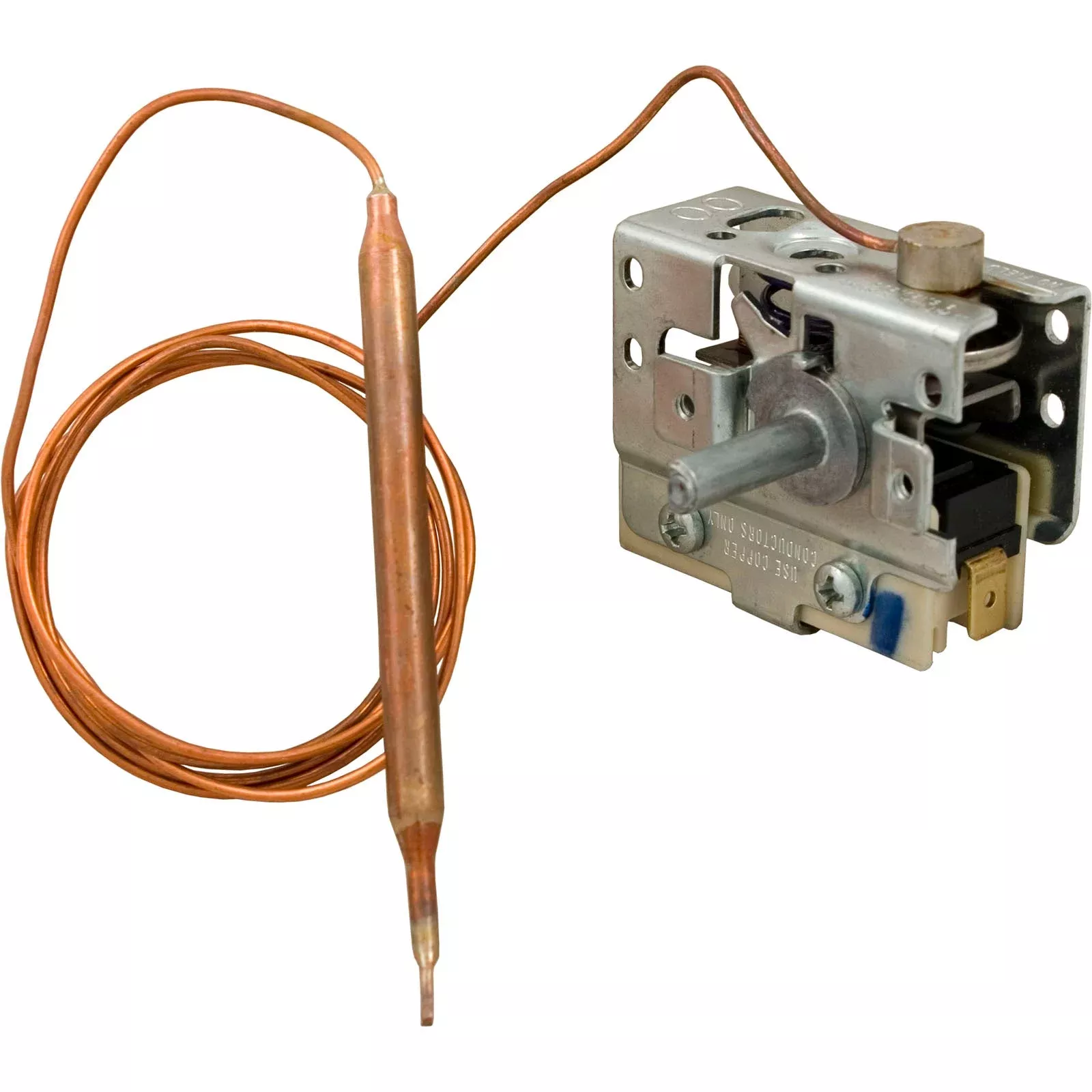

Thermostat, Invensys, 1/4″, 36″, SPST, 25A

x

Thermostat, Invensys, 1/4″, 36″, SPST, 25A

Thermostats
Single pole rated at 25 amps with max temp rating at 107&degF. Best results are obtained when the bulb is installed in a dry well or groove tube at or immediately before the heater. This is a safety device! If it is found to be out of calibration, do not attempt to perform a field adjustment! Replace bad thermostat with a new one
Capillary Length: 36″
Bulb Thickness: 1/4″Vendor: Invensys Appliance ControlsSku: 47-335-1058Mpn: 275-3124-00
