Product Description

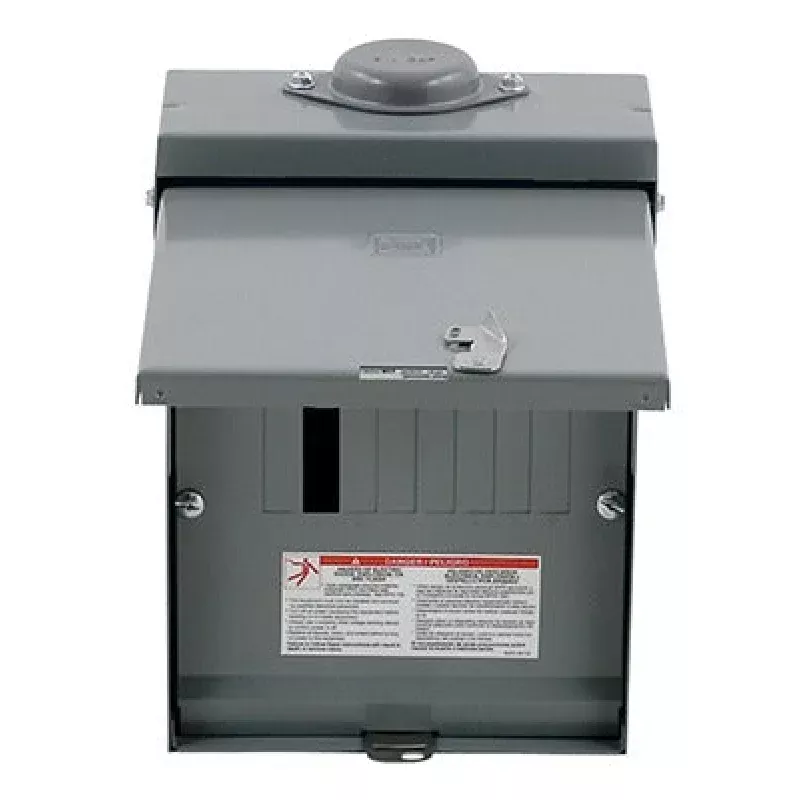

The Square D QO612L100RBCP is a 100-amp single-phase outdoor load center designed for residential and light commercial electrical distribution. It ships with factory-installed main lugs and a copper bus bar, handling 120/240 VAC on a 3-wire system. The enclosure is rated for outdoor installation and provides 6 spaces accommodating up to 12 circuits using tandem breakers. A ground bar (PK7GTA) is included in the box. Licensed electricians install this unit as a primary or sub-panel in applications where a breaker-ready main lug configuration is required at the point of service.
This load center is suited for outdoor service entrance and feeder applications in residential construction, detached garages, workshops, and similar structures. The main lug design accepts conductors directly from an upstream disconnect or meter base. The enclosure is built for outdoor exposure, making it appropriate for installations subject to moisture and weather. The panel is convertible to a main breaker configuration, providing flexibility for different service configurations without requiring a full panel replacement.
Key Features
- 100-amp capacity with factory-installed main lugs for direct conductor termination
- 6 spaces supporting up to 12 circuits with tandem breaker use
- Copper bus bar for reliable conductivity and corrosion resistance
- Outdoor-rated enclosure suitable for weather-exposed installations
- Convertible to main breaker configuration for service entrance flexibility
- Includes ground bar PK7GTA no separate purchase required
- UL Listed for code-compliant installations
Compatibility
Designed as an OEM-style load center compatible with Square D QO-series circuit breakers, including single-pole and double-pole breakers as well as QO tandem breakers where local code permits.
Installation Notes
Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the upstream service before making any connections to the bus bar or main lug terminals. Verify conductor sizing and torque requirements per the terminal markings and NEC Table requirements before energizing. The outdoor enclosure must be mounted and sealed per manufacturer guidelines to maintain its weather rating.
Technical Specifications
- Amperage: 100 amps
- Voltage: 120/240 VAC
- Phase: Single phase
- Wire Configuration: 3-wire
- Spaces: 6
- Maximum Circuits: 12
- Bus Bar Material: Copper
- Main Configuration: Main lug (convertible to main breaker)
- Enclosure Rating: Outdoor
- Included Accessories: Ground bar PK7GTA
- Listing: UL Listed
- Weight: 9.4 pounds
- Package Quantity: 1
Standard Information
- Brand: Square D by Schneider Electric
- Manufacturer Part Number: QO612L100RBCP
