Product Description

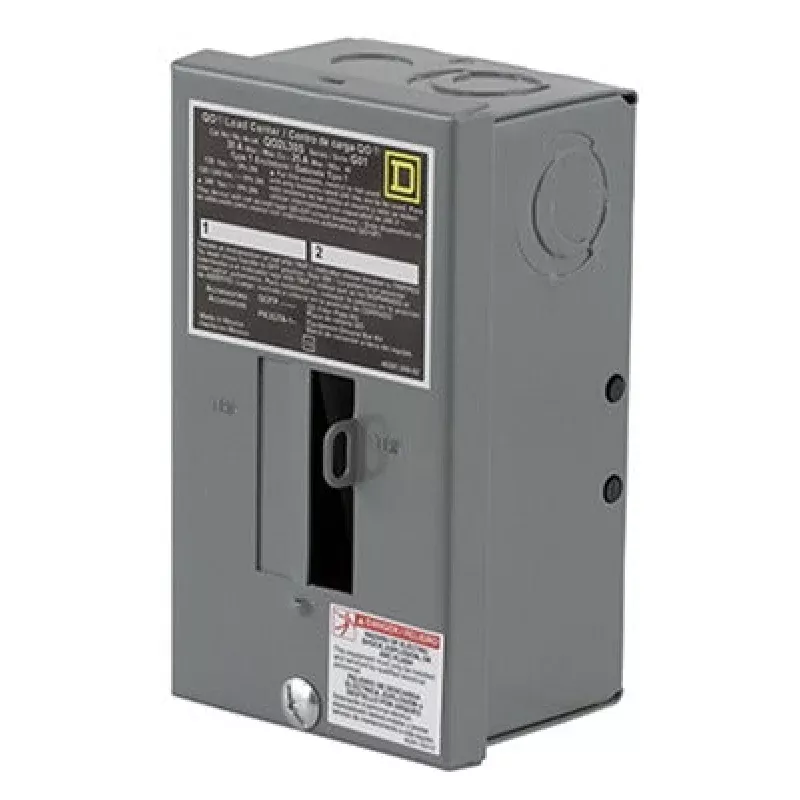

The SQUARE D BY SCHNEIDER ELECTRIC QO2L30SCP is a 30-amp main lugs load center designed for single-phase electrical distribution in surface-mount applications. Rated at 120/240 volts, this unit provides 2 spaces accommodating up to 2 single-pole QO circuit breakers. It ships with a solid neutral bar and cover included. Licensed electricians install this panel in residential and light commercial settings where a compact, code-compliant sub-panel or service entrance enclosure is required. When used as a service entrance, the separately available ground bar PK3GTA-1 is required.
This load center is suited for residential sub-panel installations, detached garage feeders, workshop circuits, and other applications where a small, dedicated distribution point is needed. Its surface-mount design makes it appropriate for installations on exposed framing, masonry, or other finished wall surfaces. The unit accepts QO-series breakers, which are a common format in residential electrical systems.
Key Features
- 30-amp main lugs rating for sub-panel or service entrance use
- 2-space panel accepts up to 2 single-pole QO circuit breakers
- 120/240V single-phase configuration for standard residential loads
- Solid neutral bar included; cover included
- Surface-mount enclosure for exposed or finished-surface installation
- Service entrance rated when ground bar PK3GTA-1 is installed (sold separately)
Compatibility
Designed for use with QO-series circuit breakers. When configured as a service entrance, requires the addition of ground bar PK3GTA-1.
Installation Notes
Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the upstream feeder completely before wiring the load center. Verify conductor sizing matches the 30-amp rating before terminating at the main lugs. Do not install as a service entrance without first adding the required ground bar PK3GTA-1.
Technical Specifications
- Amperage Rating: 30 amps
- Voltage Rating: 120/240 volts
- Phase: Single phase
- Number of Spaces: 2
- Circuit Capacity: 2 single-pole circuits
- Neutral Bar: Solid neutral, included
- Mount Type: Surface mount
- Cover: Included
- Compatible Breaker Type: QO circuit breakers
- Weight: 1.85 pounds
- Package Quantity: 1
Standard Information
- Brand: SQUARE D BY SCHNEIDER ELECTRIC
- Manufacturer Part Number: QO2L30SCP
