Product Description

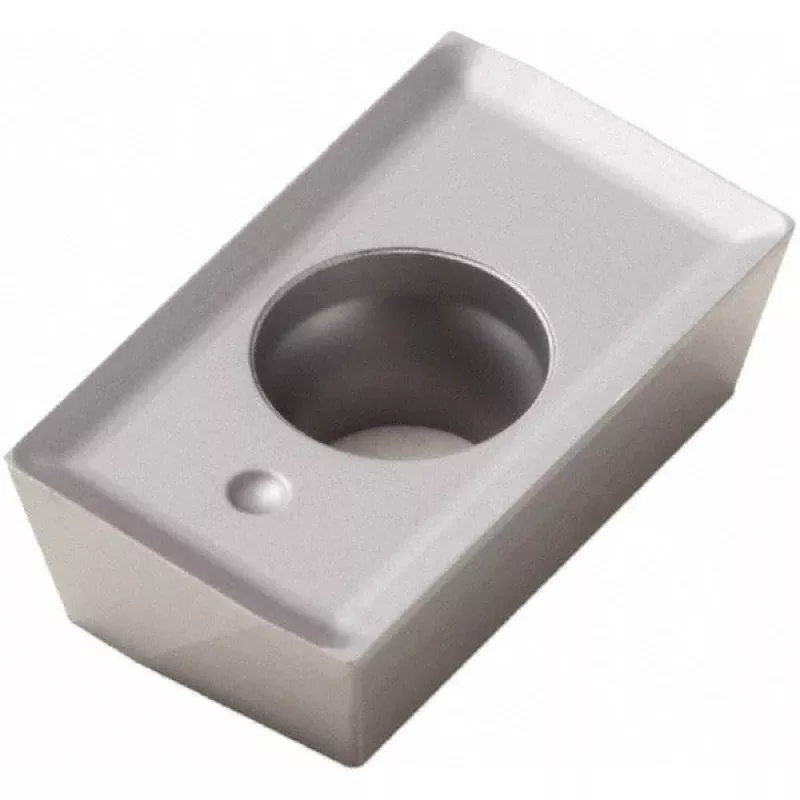

The SECO 74018810 is a solid carbide milling insert identified by ANSI and ISO code APKT1604PDR-E12, designed for indexable milling operations in metalworking applications. The insert features an APKT parallelogram shape with an 85-degree included angle, a positive rake angle of 22 degrees, and an 11-degree relief angle. Manufactured from fine-grain solid carbide in an uncoated bright finish, the insert measures 0.375 inches wide, 0.6476 inches in cutting edge effective length, and 0.1874 inches thick. It carries the HX manufacturer grade and uses a screw-holding method for secure seating in the cutter body. The E12 chip breaker geometry and honed cutting edge style make it well-suited for controlled chip formation across a range of workpiece materials.
This insert is rated for primary use on non-ferrous metals and is also suited for cast iron, superalloys, and titanium as secondary workpiece materials. It is a right-hand insert with two cutting edges on a single-sided configuration, offering a maximum depth of cut of 0.622 inches. The insert is compatible with SECO cutter series R217.69-16 and R220.69-16, making it a direct fit for those milling bodies without modification. Typical users include machinists and CNC toolroom professionals performing face milling, shoulder milling, or pocket milling operations on non-ferrous and exotic alloy workpieces.
Key Features
- APKT parallelogram insert shape with 85-degree included angle and positive 22-degree rake for free-cutting action
- Fine-grain solid carbide substrate in uncoated bright finish for non-ferrous and titanium machining
- E12 chip breaker geometry with honed cutting edge for consistent chip control
- Two cutting edges per insert on a single-sided, right-hand configuration
- Maximum depth of cut of 0.622 inches with a 0.0157-inch corner radius
- Screw-holding method ensures rigid insert retention in compatible cutter bodies
Compatibility
Compatible with SECO cutter series R217.69-16 and R220.69-16. Insert series is APKT-16 per manufacturer designation. Rated for non-ferrous metal as the primary workpiece material, with secondary suitability for cast iron, non-ferrous metal, superalloys, and titanium (material codes K, N, and S).
Installation Notes
Installation is performed by qualified machinists or CNC toolroom technicians following standard indexable insert procedures. Before seating or indexing the insert, ensure the machine spindle is fully stopped and locked out per shop LOTO procedures. Clean the insert pocket and seating surfaces before installation to prevent seating errors that can affect runout and surface finish. Use the appropriate torx or hex key to torque the clamping screw to the cutter body manufacturer specification; do not over-tighten, as solid carbide inserts are brittle and susceptible to fracture under excessive clamp force.
Technical Specifications
- Insert Style: APKT
- Insert Shape: Parallelogram
- Insert Material: Solid Carbide
- Material Grade: Fine Grain
- Manufacturer Grade: HX
- Coating / Finish: Bright / Uncoated
- ANSI / ISO Code: APKT1604PDR-E12
- Insert Size Code: 1604
- Series: APKT-16
- Chip Breaker: E12
- Width: 0.375 inches
- Thickness: 0.1874 inches
- Cutting Edge Effective Length: 0.6476 inches
- Inscribed Circle: 0.375 inches
- Corner Radius: 0.0157 inches (1/64 inch)
- Hole Diameter: 0.1772 inches
- Maximum Depth of Cut: 0.622 inches
- Relief Angle: 11 degrees
- Rake Angle: 22 degrees (Positive)
- Included Angle: 85 degrees
- Cutting Edge Style: Honed
- Insert Hand: Right Hand
- Number of Cutting Edges: 2
- Single or Double Sided: Single
- Insert Holding Method: Screw
- Primary Workpiece Material: Non-Ferrous Metal (N)
- Secondary Workpiece Materials: Cast Iron (K), Non-Ferrous Metal (N), Superalloys and Titanium (S)
- Cutter Series Compatibility: R217.69-16, R220.69-16
- Standards: ISO
- Weight: 0.02 pounds
Standard Information
- Brand: SECO
- Manufacturer Part Number: 74018810
