Product Description

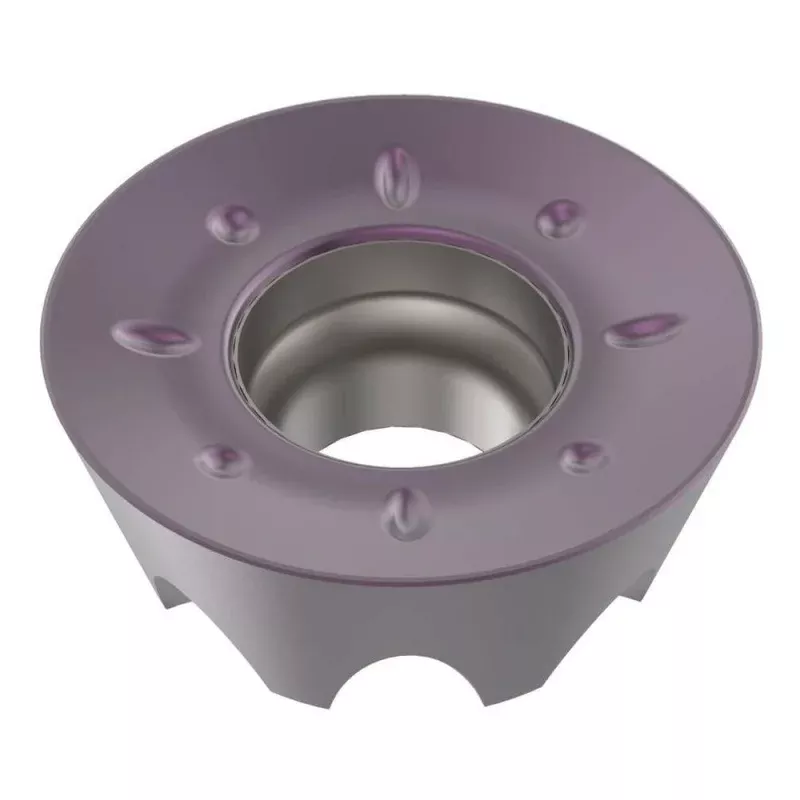

The SECO 03280726 is a round milling insert designed for indexable milling operations in demanding metal-cutting applications. Manufactured from fine-grain solid carbide and coated with TiSiN and TiAlN via a PVD coating process, this insert delivers wear resistance and thermal stability during high-speed milling. The ANSI/ISO designation is RDHT10T3M0T-8-M11, belonging to the RDHT-10 series. It features 8 cutting edges, a positive rake angle of 16 degrees, and a T-Land cutting edge style. The chip breaker designation is M11, suited for medium machining conditions. Licensed machinists and CNC tooling specialists install this insert in compatible indexable milling cutter bodies.
This insert is intended for milling steel, stainless steel, superalloys, and titanium, corresponding to ISO material grades P, M, and S. It is a single-sided insert with a neutral hand orientation and a relief angle of 15 degrees. The round shape provides a full 360-degree included angle, enabling consistent radial engagement and smooth surface finishes on contoured or flat workpieces. Typical applications include face milling, ramping, and helical interpolation on CNC machining centers in both production and job-shop environments. The insert is held in the cutter body via a screw-clamping method.
Key Features
- Round RDHT insert shape with 360-degree included angle and 8 usable cutting edges
- Fine-grain solid carbide substrate with MP2050 manufacturer grade for steel and superalloy cutting
- TiSiN and TiAlN dual PVD coating for elevated heat resistance and extended tool life
- Positive rake geometry (16-degree rake angle) reduces cutting forces on difficult materials
- T-Land cutting edge style provides edge strength during interrupted or high-feed cuts
- M11 chip breaker optimized for medium-duty milling of steel, stainless steel, and titanium
- Maximum depth of cut of 0.1969 inches; screw-held insert for secure positioning in the cutter body
Compatibility
Compatible with SECO cutter series R217.29-05 and R220.29-05 as specified by the manufacturer. Insert size code is 10T3 per ANSI and ISO standards.
Installation Notes
Installation is performed by CNC machinists or tooling specialists. Always power down and lock out the machine spindle before seating or indexing inserts. Use the appropriate Torx or hex key as specified by the cutter body manufacturer to secure the clamping screw do not overtighten or use impact drivers on insert screws. Inspect the insert pocket and screw threads for debris or damage before seating a new insert to ensure proper seating and runout.
Technical Specifications
- Insert Style: RDHT
- Insert Shape: Round
- ANSI/ISO Code: RDHT10T3M0T-8-M11
- Manufacturer Grade: MP2050
- Insert Material: Solid Carbide, Fine Grain
- Coating: TiSiN, TiAlN (PVD Process)
- Number of Cutting Edges: 8
- Insert Size Code: 10T3
- Inscribed Circle: 0.3937 inches (10.00 mm)
- Thickness: 0.1563 inches (5/32 inches)
- Corner Radius: 0.1969 inches (5.00 mm)
- Maximum Depth of Cut: 0.1969 inches
- Cutting Edge Effective Length: 0.1969 inches
- Hole Diameter: 0.1378 inches
- Relief Angle: 15 degrees
- Rake Angle: 16 degrees
- Rake: Positive
- Cutting Edge Style: T-Land
- Chip Breaker: M11
- Insert Hand: Neutral
- Single or Double Sided: Single
- Insert Holding Method: Screw
- Series: RDHT-10
- Cutter Series Compatibility: R217.29-05, R220.29-05
- Material Application: Steel, Stainless Steel, Superalloys, Titanium
- ISO Material Grade Codes: P, M, S
- Standards: ISO
- Package Weight: 0.7 pounds
- Package Quantity: 1
Standard Information
- Brand: SECO
- Manufacturer Part Number: 03280726
