Product Description

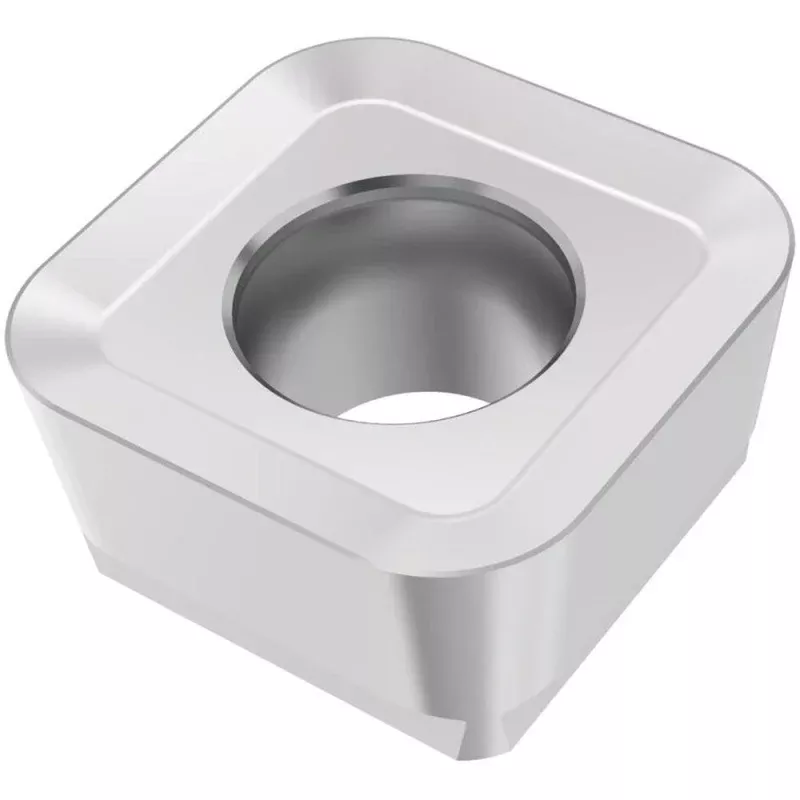

The SECO 03273260 is a solid carbide milling insert carrying the ANSI/ISO designation SCET120630T-M14 in manufacturer grade MP2501. It features a square insert shape with a 90-degree included angle, four cutting edges, and a neutral hand orientation. The CVD-applied Duratomic coating combines TiCN and Al2O3 layers for extended tool life in demanding milling operations. A positive rake angle of 15 degrees and T-Land cutting edge style reduce cutting forces and improve chip evacuation. The insert is held in place by a screw and fits the R220.21-SC12 cutter series. Licensed HVAC and metalworking professionals recognize this insert for consistent performance in high-production milling environments.
This insert is suited for milling steel as its primary workpiece material, with additional application coverage for stainless steel, cast iron, superalloys, and titanium. The M14 chip breaker geometry is optimized for these material groups. It is designed for use in face milling and shoulder milling operations on CNC machining centers where controlled chip formation and thermal resistance are critical. The fine-grain carbide substrate supports higher cutting speeds without sacrificing edge integrity.
Key Features
- Solid carbide substrate with fine-grain material grade for high-speed milling stability
- CVD Duratomic coating (TiCN plus Al2O3) for wear resistance and thermal protection
- Four cutting edges per insert with neutral hand and positive 15-degree rake angle
- M14 chip breaker geometry optimized for steel, stainless steel, cast iron, superalloys, and titanium
- T-Land cutting edge style reduces chipping and improves edge strength
- Compatible with R220.21-SC12 cutter series for direct drop-in replacement
Compatibility
Designed for use with the SECO R220.21-SC12 cutter series. The ANSI and ISO code SCET120630T-M14 with insert size code 120630 and series designation SCET-12 defines the physical interface. Verify toolholder pocket geometry before installation.
Installation Notes
Installation should be performed by a qualified machinist or tooling technician with the machine spindle fully stopped and all energy sources locked out per OSHA lockout/tagout procedures. Use the correct torx or hex key to seat the clamping screw to the toolholder manufacturer’s specified procedure do not overtighten. Inspect the insert pocket seat for debris or damage before seating the insert. Replace all four cutting edges before reordering to maximize insert utilization.
Technical Specifications
- Insert Style: SCET
- Insert Shape: Square
- Insert Material: Solid Carbide
- Material Grade: Fine Grain
- Manufacturer Grade: MP2501
- ANSI/ISO Code: SCET120630T-M14
- Insert Size Code: 120630
- Series: SCET-12
- Cutter Series Compatibility: R220.21-SC12
- Number of Cutting Edges: 4
- Insert Hand: Neutral
- Single or Double Sided: Single
- Included Angle: 90 degrees
- Rake: Positive
- Rake Angle: 15 degrees
- Relief Angle: 7 degrees
- Cutting Edge Style: T-Land
- Chip Breaker: M14
- Coating/Finish: TiCN plus Al2O3
- Coating Classification: Duratomic
- Coating Process: CVD
- Corner Radius: 0.1181 inches (3.00 mm)
- Width: 0.5000 inches (12.70 mm)
- Length: 0.5000 inches
- Thickness: 0.2500 inches
- Inscribed Circle: 0.5000 inches
- Hole Diameter: 0.2205 inches
- Cutting Edge Effective Length: 0.5000 inches
- Maximum Depth of Cut: 0.3819 inches
- Thickness Range: 0.2500 to 0.3500 inches
- Inscribed Circle Range: 0.5000 to 0.5100 inches
- Length Range: 0.5000 to 0.6000 inches
- Primary Workpiece Material: Steel (P)
- Secondary Workpiece Materials: Stainless Steel (M), Cast Iron (K), Superalloys and Titanium (S)
- Insert Holding Method: Screw
- Standards: ISO
- Weight: 0.2 pounds
- Package Quantity: 1
Standard Information
- Brand: SECO
- Manufacturer Part Number: 03273260
