Product Description

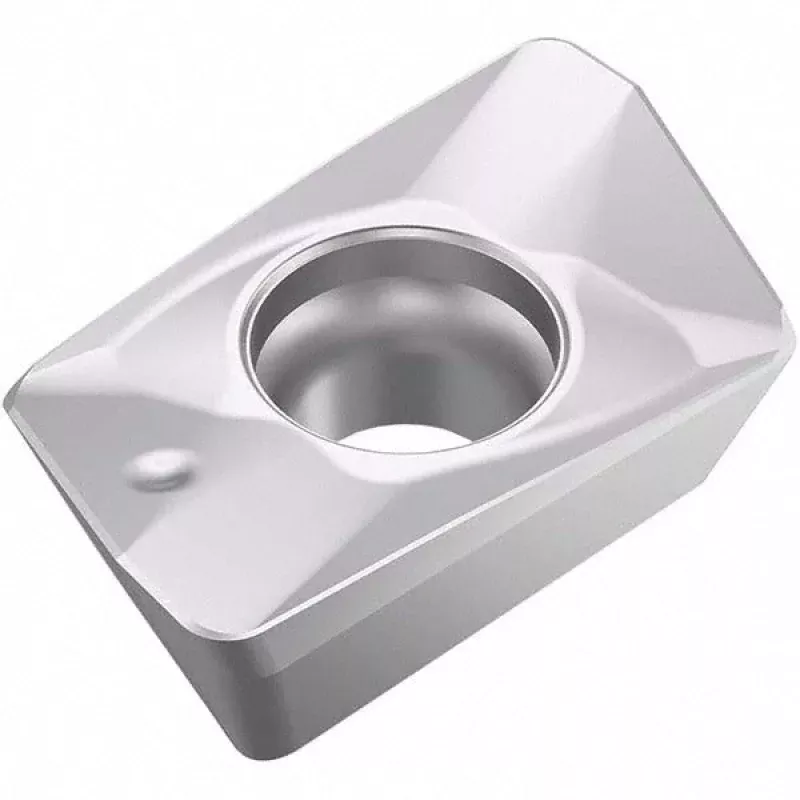

The SECO 03272829 is a solid carbide milling insert with ANSI/ISO designation XOMX120408TR-MD13, offered in manufacturer grade MP1501 with a CVD-applied Duratomic TiCN and Al2O3 coating. This single-sided, right-hand parallelogram insert features a positive rake geometry of 14.6 degrees, a T-Land cutting edge style, and a 15-degree relief angle. With two cutting edges, an inscribed circle of 8.20 mm, and a thickness of 5.07 mm, it is engineered for productive face and shoulder milling in steel, cast iron, and hard material applications. Machinists and tool-crib technicians working with compatible SECO cutter bodies select this insert for demanding material removal operations.
This insert is suited for use in CNC machining centers performing milling operations on steel and cast iron workpieces, including hardened materials. It is compatible with SECO cutter series R217.69-12 and R220.69-12. The MD13 chip breaker geometry supports controlled chip formation at moderate to aggressive feed rates. The CVD Duratomic coating provides thermal resistance and wear performance appropriate for production milling environments in both job-shop and manufacturing settings.
Key Features
- Solid carbide fine-grain substrate with CVD Duratomic TiCN and Al2O3 coating for wear resistance
- Positive rake angle of 14.6 degrees with T-Land cutting edge for reduced cutting forces
- 2 cutting edges per insert; single-sided, right-hand orientation
- MD13 chip breaker designed for steel, cast iron, and hard material applications
- Maximum depth of cut of 5.80 mm; effective cutting edge length of 11.60 mm
- Screw-held mounting; ISO-standard geometry for consistent seating in compatible cutter bodies
Compatibility
Compatible with SECO cutter series R217.69-12 and R220.69-12. ANSI and ISO code XOMX120408TR-MD13 with insert size code 120408.
Installation Notes
Installation is performed by qualified machinists or tooling technicians. Ensure the cutter body is fully secured and the machine spindle is powered down and locked out before seating or replacing inserts. Use the appropriate torx or hex driver to tighten the clamping screw to the cutter body specification; do not over-torque. Inspect the insert pocket and seating surfaces for chips or debris before installation to ensure proper contact and runout.
Technical Specifications
- Insert Style: XOMX
- ANSI / ISO Code: XOMX120408TR-MD13
- Manufacturer Grade: MP1501
- Insert Shape: Parallelogram
- Insert Material: Solid Carbide, Fine Grain
- Coating: TiCN and Al2O3 (CVD Duratomic)
- Number of Cutting Edges: 2
- Insert Hand: Right Hand
- Single or Double Sided: Single
- Rake: Positive
- Rake Angle: 14.6 degrees
- Relief Angle: 15 degrees
- Cutting Edge Style: T-Land
- Chip Breaker: MD13
- Included Angle: 90 degrees
- Inscribed Circle: 8.20 mm (0.3228 inches)
- Thickness: 5.07 mm (0.1996 inches)
- Length: 11.60 mm (0.4567 inches)
- Corner Radius: 0.0315 inches (1/32 inch)
- Maximum Depth of Cut: 5.80 mm (0.4567 inches)
- Hole Diameter: 0.15 mm (0.1535 inches)
- Insert Holding Method: Screw
- Primary Workpiece Material: Steel (Code P)
- Secondary Workpiece Material: Cast Iron (Code K); Hard Material (Code H)
- Cutter Series Compatibility: R217.69-12; R220.69-12
- Standards: ISO
- Package Quantity: 1
- Weight: 0.9 pounds
Standard Information
- Brand: SECO
- Manufacturer Part Number: 03272829
