Product Description

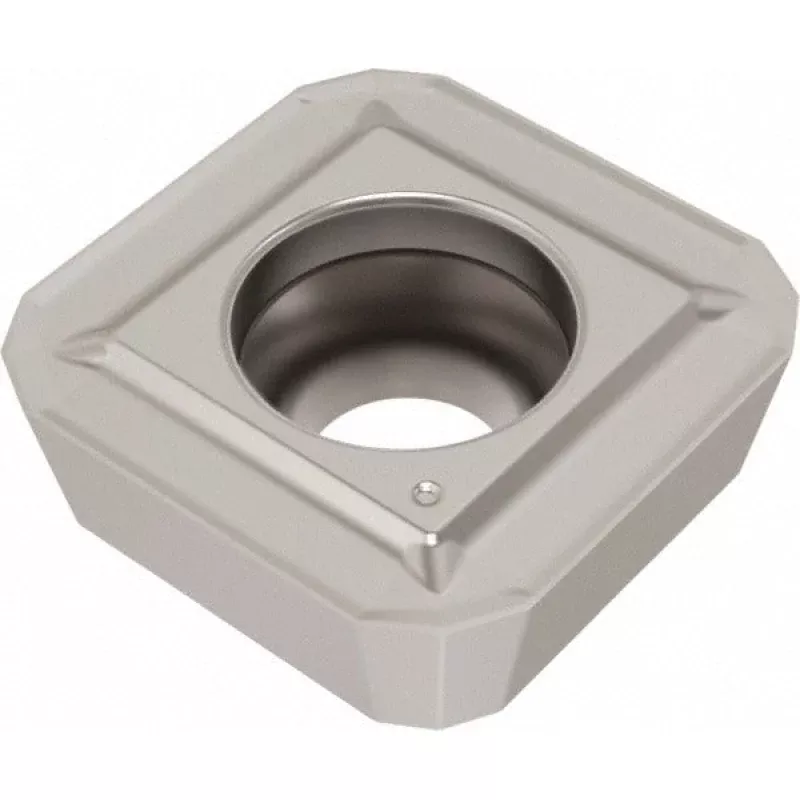

The SECO 03134324 is a solid carbide indexable drill insert designed for use in Perfomax series indexable drills. Featuring the SPGX insert style with an MC chipbreaker, this square-shaped insert measures 0.5000 inches inscribed circle and carries a DS4050 manufacturer grade. The TiAlN and NbN PVD coating provides wear resistance and heat tolerance across a broad range of workpiece materials. The 90-degree included angle and 11-degree relief angle are engineered for reliable chip formation and stable cutting performance. Installation requires a compatible Perfomax drill body and is performed by machinists and tooling technicians in production or job-shop environments.
This insert is suited for universal application across multiple material groups, including code designations M, N, P, and S, covering carbon steels, stainless steels, non-ferrous metals, and heat-resistant alloys. The Perfomax series is a common platform in CNC turning centers and machining centers for hole-making operations. The insert is sold individually and is a direct replacement insert for Perfomax drill bodies accepting the 12T3 insert size.
Key Features
- SPGX insert style with MC chipbreaker for controlled chip evacuation
- DS4050 grade with TiAlN and NbN PVD coating for extended tool life
- Square shape with 90-degree included angle and 11-degree relief angle
- 0.5000 inch inscribed circle, compatible with 12T3 insert size designation
- Universal material grade (C3, C4) rated for M, N, P, and S workpiece material codes
- Sold individually with a minimum order quantity of 1
Compatibility
Designed as a replacement indexable insert for SECO Perfomax series drill bodies accepting SPGX 12T3-style inserts.
Installation Notes
Insert installation and indexing should be performed with the machine powered down and spindle locked. Use the correct Torx or hex key specified by the drill body manufacturer to seat the insert securely in the pocket. Inspect the insert pocket and clamping screw for wear or damage before installing a new insert. Follow the tooling manufacturer guidelines for seating torque class and insert orientation to prevent premature edge failure.
Technical Specifications
- Insert Style: SPGX
- Insert Material: Solid Carbide
- Manufacturer Grade: DS4050
- Material Grade: C3, C4
- Series: Perfomax
- Shape: Square
- Insert Size Code: 12T3
- Inscribed Circle: 0.5000 inches
- Width: 12.70 mm (0.5000 inches)
- Length: 12.7 mm (0.5000 inches)
- Included Angle: 90 degrees
- Relief Angle: 11 degrees
- Chipbreaker: MC
- Coating/Finish: TiAlN, NbN
- Coating Process: PVD
- Primary Workpiece Material: Universal (M, N, P, S)
- Package Height: 1.5 inches
- Package Width: 1.5 inches
- Package Length: 3.54 inches
- Weight: 0.02 pounds
- Package Quantity: 1
Standard Information
- Brand: SECO
- Manufacturer Part Number: 03134324
