Product Description

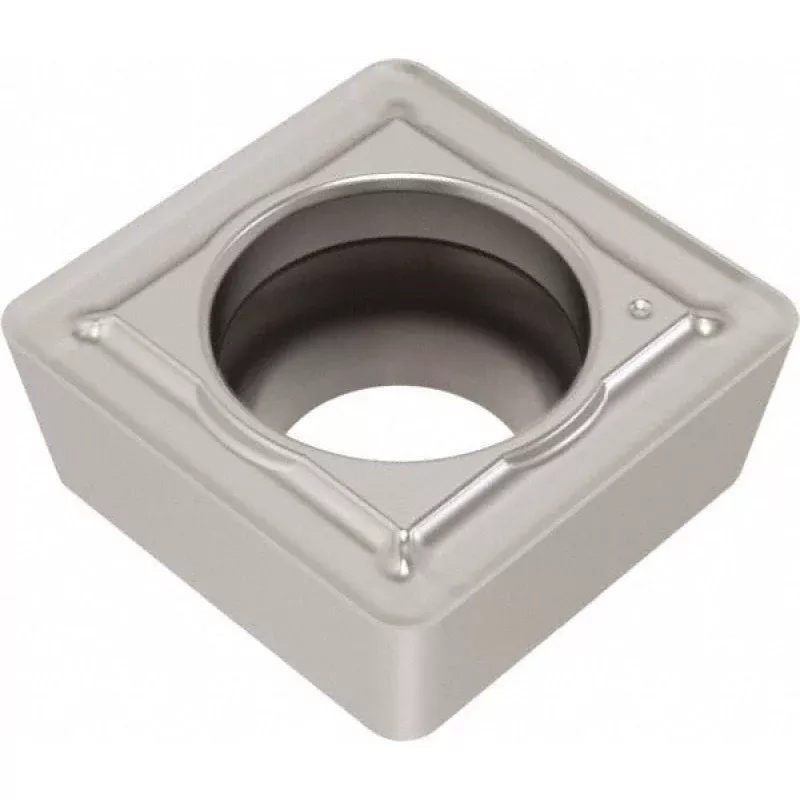

The SECO 03134312 is a solid carbide indexable drill insert designed for use with Perfomax series indexable drills. The insert features the SCGX style in a 90-degree square shape with a MP chipbreaker geometry and a PVD-applied coating for extended tool life. Manufactured to the DS2050 grade, it offers reliable performance across a broad range of workpiece materials. The inscribed circle measures 5.56 mm (0.2190 inches) and the corner radius is 0.40 mm. This insert is installed and replaced by machinists and tooling technicians in production and job-shop environments.
This insert is suited for both left-hand and right-hand cutting applications. It is rated for universal primary workpiece materials, covering material grade codes M, N, P, and S, which correspond to stainless steels, non-ferrous materials, carbon and alloy steels, and heat-resistant superalloys. Its square shape with a 7-degree relief angle supports stable cutting performance in indexable drill bodies from the Perfomax series. Sold individually with a minimum order quantity of 10 units per order.
Key Features
- Solid carbide construction with PVD coating for wear resistance and longer service intervals
- DS2050 manufacturer grade rated for universal workpiece materials including steel, stainless, non-ferrous, and superalloys
- MP chipbreaker geometry for efficient chip control across varied feed and speed conditions
- 90-degree square insert shape with 7-degree relief angle for stable entry and reduced thrust forces
- Compatible with both left-hand and right-hand cutting directions
- Inscribed circle of 5.56 mm (0.2190 inches) and 0.40 mm corner radius for precise fitment in Perfomax drill bodies
Compatibility
Designed as an OEM-style replacement insert for SECO Perfomax series indexable drill bodies requiring SCGX05 style inserts.
Installation Notes
Insert replacement should be performed by a qualified machinist or tooling technician with the machine powered down and in a locked-out state. Use the appropriate torx or hex key as specified by the drill body manufacturer when seating the insert to avoid overtightening and seat damage. Inspect the insert pocket for wear or debris before seating a new insert. Handle carbide inserts with care to avoid chipping the cutting edges prior to installation.
Technical Specifications
- Insert Style: SCGX
- Insert Material: Solid Carbide
- Manufacturer Grade: DS2050
- Coating Process: PVD
- Coating/Finish: Coated
- Chipbreaker: MP
- Shape: Square
- Included Angle: 90 degrees
- Relief Angle: 7 degrees
- Cutting Direction: Left Hand and Right Hand
- Inscribed Circle: 5.56 mm (0.2190 inches)
- Corner Radius: 0.40 mm
- Insert Size Code: 050204
- Primary Workpiece Material: Universal (M, N, P, S)
- Series: Perfomax
- Height: 1.5 inches
- Width: 1.5 inches
- Length: 3.54 inches
- Weight: 0.01 pounds
- Package Quantity: 1
- Minimum Order Quantity: 10
Standard Information
- Brand: SECO
- Manufacturer Part Number: 03134312
