Product Description

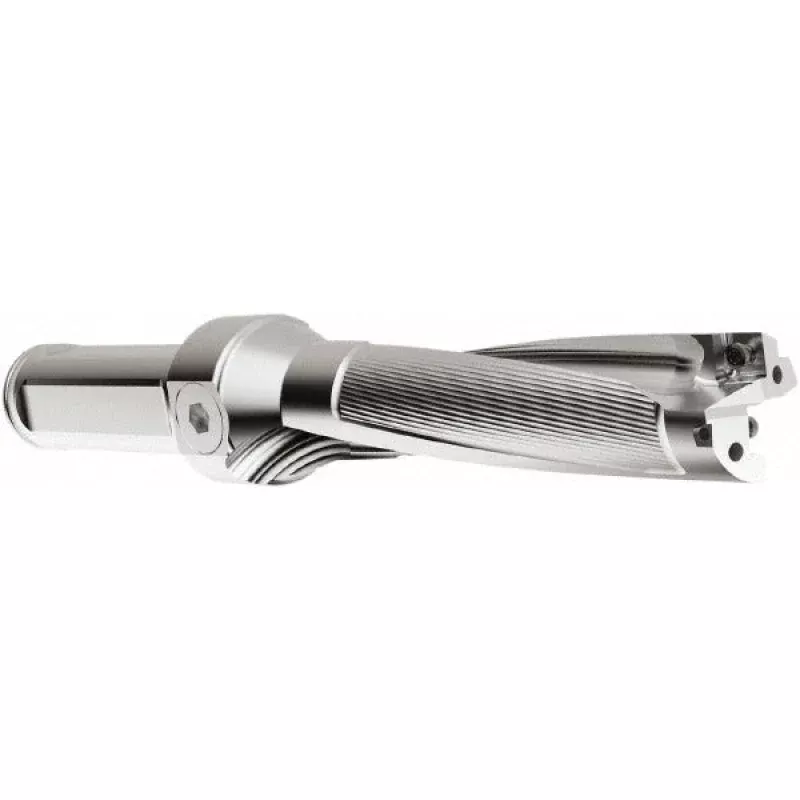

The SECO 03080284 is a straight-shank indexable insert drill from the PerfoMAX series, designed for general-purpose drilling in metal fabrication and machining applications. Built from steel with a 17.45 mm (0.6870 inch) drill diameter and a maximum drill depth of 2-3/4 inches at a 4xD depth-to-diameter ratio, this drill accepts two SCGX / SPGX0502 style inserts for efficient, repeatable cutting. The 1-inch straight cylindrical shank provides secure tool holding in standard drill chucks and toolholders. Coolant-through capability supports extended tool life in higher-volume production environments. Right-hand cutting direction is standard.
This indexable insert drill is suited for CNC machining centers and drilling stations performing general-purpose hole-making in ferrous and non-ferrous materials. The PerfoMAX platform is commonly used in job shops and production facilities where insert replaceability and consistent bore quality matter. The modular R7-C connection size and 35 mm collar diameter allow integration with compatible SECO tooling systems. Machinists and tooling technicians are the primary installers and operators of this drill body.
Key Features
- 17.45 mm drill diameter with 0.6870 inch decimal equivalent for precise tool selection
- 4xD depth-to-diameter ratio allows drilling to 2-3/4 inches maximum depth
- Accepts two SCGX / SPGX0502 indexable inserts for fast insert changeover
- Coolant-through design supports chip evacuation and tool life in production drilling
- 1-inch straight cylindrical shank fits standard toolholders without adapters
- Right-hand cutting direction; steel body construction
Compatibility
Compatible with SD524 drill style tooling systems. Takes SCGX and SPGX0502 compatible insert styles in size code 0502 / 050204. Modular connection size is R7-C.
Installation Notes
Installation and setup should be performed by a qualified machinist or tooling technician. Ensure the machine spindle and toolholder are fully powered down and locked out before changing inserts or mounting the drill body. Verify shank seating depth and clamping torque per the machine tool manufacturer specifications before running. Confirm coolant-through lines are clear and delivering adequate flow before initiating cuts.
Technical Specifications
- Drill Diameter: 17.45 mm (0.6870 inch)
- Maximum Drill Diameter: 18.37 mm
- Maximum Drill Depth: 2-3/4 inches
- Drill Depth by Diameter Ratio: 4xD
- Shank Type: Straight Cylindrical
- Shank Diameter: 1 inch (1.0000 inch decimal)
- Shank Length: 2.75 inches
- Neck Diameter: 1.3780 inches
- Collar Diameter: 35 mm
- Flute Length: 74.85 mm
- Body Length: 104.85 mm
- Number of Drill Inserts: 2
- Compatible Insert Style: SCGX / SPGX0502
- Compatible Insert Size Code: 0502 / 050204
- Compatible Drill Style: SD524
- Cutting Direction: Right Hand
- Coolant Through: Yes
- Modular Connection Size: R7-C
- Series: PerfoMAX
- Tool Application: Drilling
- Tool Performance: General Purpose
- Tool Material: Steel
- Package Dimensions: 8.07 x 2.05 x 2.05 inches
- Weight: 2.116 pounds
Standard Information
- Brand: SECO
- Manufacturer Part Number: 03080284
