Product Description

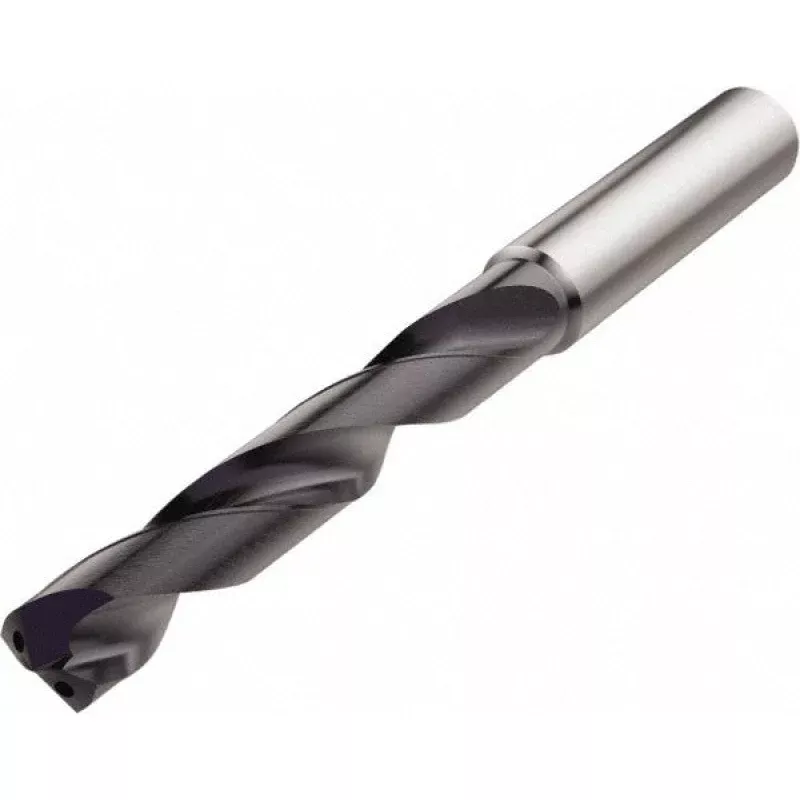

The SECO 03046206 is a solid carbide jobber-length drill bit designed for high-performance drilling in demanding materials. It carries a TiAlN coating and a 140-degree point angle suited for aggressive entry into hard, abrasive workpieces. The bit runs in a right-hand cutting direction with a regular spiral flute and a straight-cylindrical shank measuring 10.00 mm in diameter. At 103.00 mm overall length with a 61.00 mm flute length, this drill fits standard CNC machining centers, drill presses, and manual machines where a jobber-length reach is required. Licensed machinists and toolroom technicians are the primary installers.
This drill is built for production and job-shop environments where the workpiece material is steel, stainless steel, cast iron, or other hard materials classified under material codes P, M, K, and H. The SD205A series is engineered for a 6xD flute-to-diameter ratio, making it a practical choice for through-hole and blind-hole drilling operations where chip evacuation and tool rigidity are both critical. Maximum drilling depth is 49.00 mm. The drill does not support coolant-through delivery, so external flood or mist coolant is the recommended approach for heat management.
Key Features
- Solid carbide construction for rigidity and wear resistance in hard materials
- TiAlN coating extends tool life in high-temperature cutting conditions
- 140-degree point angle reduces thrust force and improves entry on hard workpieces
- Right-hand, regular spiral flute with 2 flutes for efficient chip evacuation
- Straight-cylindrical shank fits standard collet chucks and drill chucks
- Meets ANSI specification standards; diameter tolerance m7
Compatibility
Designed for use in standard straight-shank tool holders, collets, and drill chucks compatible with a 10.00 mm shank diameter. Suitable for CNC machining centers, drill presses, and manual drilling equipment used on steel, stainless steel, cast iron, and hard materials.
Installation Notes
Installation should be performed by a qualified machinist or toolroom technician following the machine tool manufacturer’s guidelines. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Secure the shank firmly in the chuck or collet to the manufacturer’s specified clamping torque range for the holder in use. Because this drill does not have coolant-through capability, apply adequate external coolant or cutting fluid to manage heat buildup during operation.
Technical Specifications
- Series: SD205A
- Drill Bit Diameter: 8.60 mm (0.3388 inches)
- Overall Length: 103.00 mm (4.0582 inches)
- Flute Length: 61.00 mm (2.4034 inches)
- Maximum Drilling Depth: 49.00 mm (2.4034 inches)
- Shank Diameter: 10.00 mm (0.3940 inches)
- Shank Length: 40.00 mm (1.5760 inches)
- Point Angle: 140 degrees
- Number of Flutes: 2
- Flute Type: Regular Spiral
- Cutting Direction: Right Hand
- Shank Type: Straight-Cylindrical
- Coating: TiAlN
- Material: Solid Carbide
- Diameter Tolerance: m7
- Coolant Through: No
- Double Margin: No
- Primary Workpiece Material: Steel, Stainless Steel, Cast Iron, Hard Material
- Specification: ANSI
- Weight: 0.15 pounds
- Package Dimensions: 6.3 inches (L) x 0.98 inches (W) x 0.98 inches (H)
Standard Information
- Brand: SECO
- Manufacturer Part Number: 03046206
