Product Description

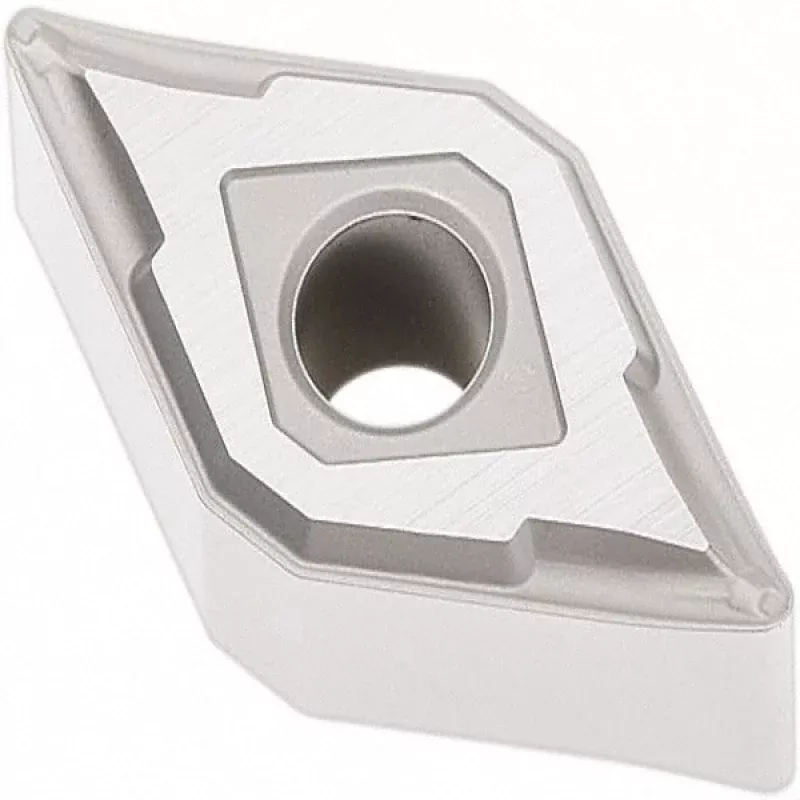

The SECO 02959803 is a solid carbide turning insert in the DNMG-MF2 series, designed for precision metal cutting on CNC lathes and turning centers. It carries the TP1501 grade designation with a Duratomic CVD coating process applying TiCN, Al2O3, and Cr layers for extended tool life in steel and cast iron applications. The insert features a 55-degree diamond shape, a 0.5 inch inscribed circle, and a 1/64 inch (0.0157 inch) corner radius. Four cutting edges per insert and a chamfered and honed cutting edge style make this a cost-effective choice for high-production turning environments. The MF2 chip breaker geometry supports controlled chip formation during finishing and light roughing passes.
This insert is suited for external turning, facing, boring, and back turning operations on steel and cast iron workpieces. The TP1501 grade targets primary workpiece material code P (steel, P10-P20) and secondary codes K (cast iron) and H (hard materials). It is installed in negative-rake toolholders that accept DNMG-style inserts with clamp, pin, or lever-lock holding methods. Typical applications include shaft turning, facing operations on CNC machining centers, and general-purpose lathe work in job shop and production environments. The ISO code for this insert is DNMG150404-MF2.
Key Features
- Duratomic CVD coating with TiCN, Al2O3, and Cr layers for wear resistance in steel and cast iron cutting
- 55-degree diamond insert shape (Shape Code D) with 4 usable cutting edges per insert
- MF2 chip breaker geometry optimized for finishing and light roughing with controlled chip evacuation
- Chamfered and honed cutting edge style for edge strength and surface finish consistency
- Compatible with clamp, pin, and lever-lock DNMG toolholder systems
- Multi-use application support: turning, facing, boring, and back turning
Compatibility
Designed for use in negative-rake DNMG-style toolholders accepting a 0.5 inch inscribed circle insert with a tolerance code M and clearance code N. Compatible with ANSI and ISO standard DNMG toolholder systems. Industry standard number DNMG431-MF2; ISO code DNMG150404-MF2.
Installation Notes
Installation is performed by a machinist or toolroom technician. Power down and lock out the machine before indexing or replacing inserts. Use the correct torque wrench and manufacturer-specified fastener for the toolholder clamping system to avoid insert cracking or seat damage. Inspect the insert pocket and seat for chips or debris before seating a new insert edge.
Technical Specifications
- Insert Style: DNMG
- Series: DNMG-MF2
- Manufacturer Grade: TP1501
- Insert Shape: Diamond 55
- Included Angle: 55 degrees
- Inscribed Circle: 0.5000 inches
- Corner Radius: 0.0157 inches (1/64 inches)
- Insert Thickness: 0.1874 inches (3/16 inches)
- Insert Length: 1.2204 inches
- Maximum Depth of Cut: 0.5945 inches
- Hole Diameter: 0.2028 inches
- Number of Cutting Edges: 4
- Insert Material: Solid Carbide
- Coating: TiCN, Al2O3, Cr (Duratomic CVD)
- Chip Breaker: MF2
- Cutting Edge Style: Chamfered and Honed
- Rake: Negative
- Insert Hand: Neutral
- Relief Angle: 0 degrees
- Tolerance Code: M
- Clearance Code: N
- Insert Holding Method: Clamp, Pin, Lever Lock
- Primary Workpiece Material: Steel (P10, P20)
- Secondary Workpiece Material: Cast Iron, Hard Material
- Multi-Use Application: Back Turning, Boring, Facing, Turning
- Standards: ANSI, ISO
- ISO Code: DNMG150404-MF2
- Industry Standard Number: DNMG431-MF2
- Weight: 0.03 pounds
- Package Quantity: 1 per package (MOQ: 10)
Standard Information
- Brand: SECO
- Manufacturer Part Number: 02959803
