Product Description

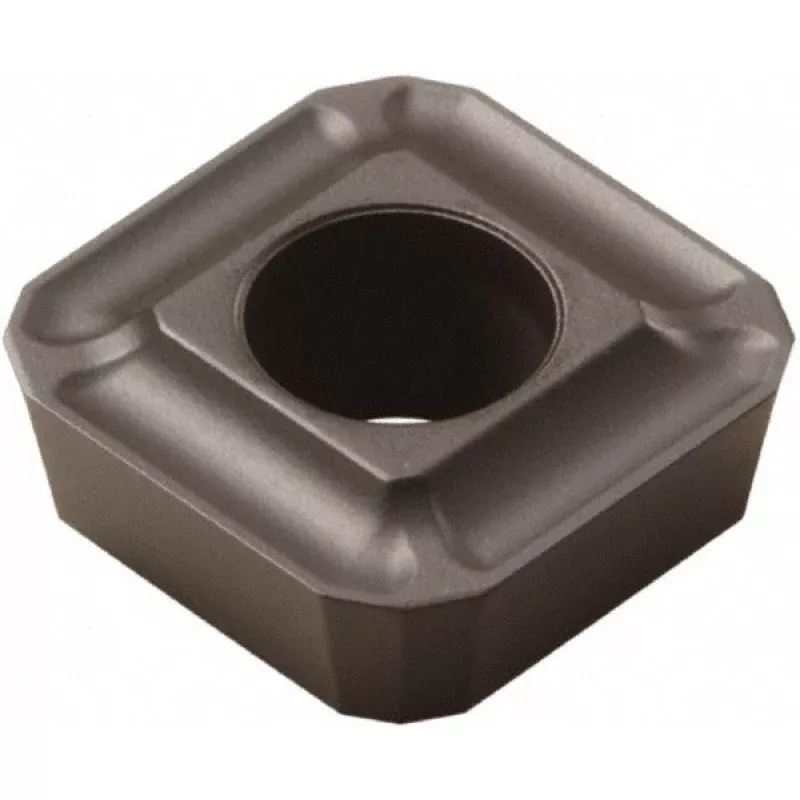

The SECO 02807369 is a solid carbide indexable drill insert designed for use in Perfomax series indexable drills. The insert carries the SPGX07C1 geometry with a DP3000 manufacturer grade and features a Duratomic coating process for extended tool life in demanding drilling applications. The square shape with a 90-degree included angle and an 11-degree relief angle promotes stable cutting and clean chip evacuation. With an inscribed circle of 0.3120 inches and a thickness of 0.1250 inches, this insert seats precisely in compatible Perfomax tooling. It is sold individually with a minimum order quantity of 10 units.
This insert is suited for right-hand cutting operations across a broad range of workpiece materials. The DP3000 grade with Duratomic coating is rated for universal primary workpiece material compatibility, covering material codes K, M, N, and P encompassing cast iron, stainless steel, non-ferrous materials, and steel. Typical applications include production drilling in CNC machining centers and turning centers where repeatable hole quality and insert indexability are required. Machinists and tooling technicians working in job shop and high-volume manufacturing environments will find this insert appropriate for a wide variety of drilling cycles.
Key Features
- DP3000 grade with Duratomic coating for wear resistance across universal workpiece materials
- SPGX insert style with C1 chipbreaker geometry for controlled chip formation during drilling
- Square shape with 90-degree included angle and 11-degree relief angle for stable seating and clean cutting action
- Right-hand cutting direction compatible with standard Perfomax drill body configurations
- Solid carbide construction for rigidity and dimensional consistency at the cutting edge
- Insert size code 07 with 0.3120-inch inscribed circle for precise fit in matching toolholders
Compatibility
Designed for use with SECO Perfomax series indexable drill bodies accepting SPGX insert style, insert size 07, with a 0.3120-inch inscribed circle.
Installation Notes
Indexable drill insert installation should be performed by a qualified machinist or tooling technician. Ensure the drill body is removed from the machine spindle and fully secured before indexing or replacing inserts. Use the correct torx or insert-clamping wrench specified for the Perfomax toolholder to achieve proper seating torque do not over-tighten or use improvised tools. Inspect the insert pocket and clamping screw for wear or debris before seating a new insert.
Technical Specifications
- Insert Style: SPGX
- Manufacturer Grade: DP3000
- Insert Material: Solid Carbide
- Coating Process: Duratomic
- Coating Status: Coated
- Shape: Square
- Included Angle: 90 degrees
- Relief Angle: 11 degrees
- Chipbreaker: C1
- Cutting Direction: Right Hand
- Inscribed Circle: 0.3120 inches
- Width: 0.3120 inches (7.94 mm)
- Length: 0.3120 inches
- Thickness: 0.1250 inches
- Insert Size Code: 07
- Series: Perfomax
- Primary Workpiece Material: Universal (K, M, N, P)
- Package Quantity: 1
- Minimum Order Quantity: 10
- Weight: 0.01 pounds
Standard Information
- Brand: SECO
- Manufacturer Part Number: 02807369
