Product Description

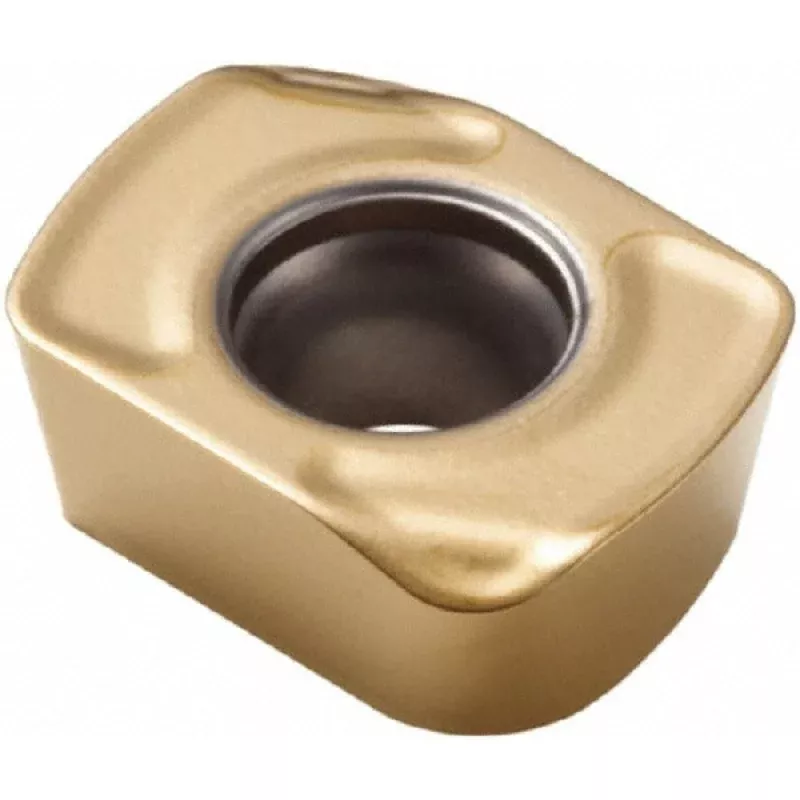

The SECO 02789604 is a solid carbide milling insert carrying ANSI and ISO designation LPHT060310TR-M06 and manufacturer grade MP3000. It features a rectangular shape with a positive rake geometry and a T-Land cutting edge style, designed for high-performance milling in demanding applications. The insert measures 0.25 inches wide and 0.1252 inches thick, with a maximum depth of cut of 0.3343 inches. A TiAlN coating applied via PVD process enhances wear resistance and tool life when cutting hard and abrasive materials. Two cutting edges are available per insert. It is installed by machinists and toolroom technicians in compatible milling cutter bodies.
This insert is suited for milling operations on steel, stainless steel, and hard materials, covering ISO material groups P, M, and H. It is a right-hand insert intended for use in single-sided configurations. Typical applications include face milling and shoulder milling where close dimensional tolerances and surface finish quality are required. The positive rake angle of 11 degrees reduces cutting forces and is well-suited for finishing and semi-finishing passes on difficult-to-machine materials.
Key Features
- Solid carbide micrograin substrate for consistent edge integrity and wear resistance
- TiAlN PVD coating rated for hard material, steel, and stainless steel cutting
- Positive rake angle of 11 degrees reduces cutting forces in finishing operations
- Corner radius of 0.0394 inches for controlled surface finish
- T-Land cutting edge style improves edge stability under interrupted cuts
- M06 chip breaker geometry for effective chip control during milling
Compatibility
Compatible with SECO cutter series R217.21-LP06 and R220.21-LP06. Insert is held in place via screw-clamping method.
Installation Notes
Installation should be performed by a qualified machinist or toolroom technician with the machine spindle fully stopped and locked out per applicable lockout/tagout procedures. Use the correct torque wrench and insert screw specified by the cutter body manufacturer to avoid seat damage or insert fracture. Inspect the pocket seat and clamping screw for wear or debris before seating the insert. Do not mix insert grades or geometries within a multi-insert cutter body.
Technical Specifications
- Insert Style: LPHT
- ANSI/ISO Code: LPHT060310TR-M06
- Manufacturer Grade: MP3000
- Insert Shape: Rectangle
- Insert Material: Solid Carbide Micrograin
- Coating/Finish: TiAlN
- Coating Process: PVD
- Width: 0.25 inches
- Thickness: 0.1252 inches
- Length: 0.3343 inches
- Inscribed Circle: 0.25 inches
- Corner Radius: 0.0394 inches
- Maximum Depth of Cut: 0.3343 inches
- Cutting Edge Effective Length: 0.3343 inches
- Hole Diameter: 0.1142 inches
- Number of Cutting Edges: 2
- Rake Angle: 11 degrees
- Relief Angle: 11 degrees
- Included Angle: 90 degrees
- Cutting Edge Style: T-Land
- Chip Breaker: M06
- Insert Hand: Right Hand
- Rake: Positive
- Insert Holding Method: Screw
- Sided: Single
- Primary Workpiece Material: Hard Material
- Secondary Workpiece Material: Steel, Stainless Steel
- Cutter Series Compatibility: R217.21-LP06, R220.21-LP06
- Series: LPHT-06
- Standards: ISO
- Weight: 0.07 pounds
Standard Information
- Brand: SECO
- Manufacturer Part Number: 02789604
