Product Description

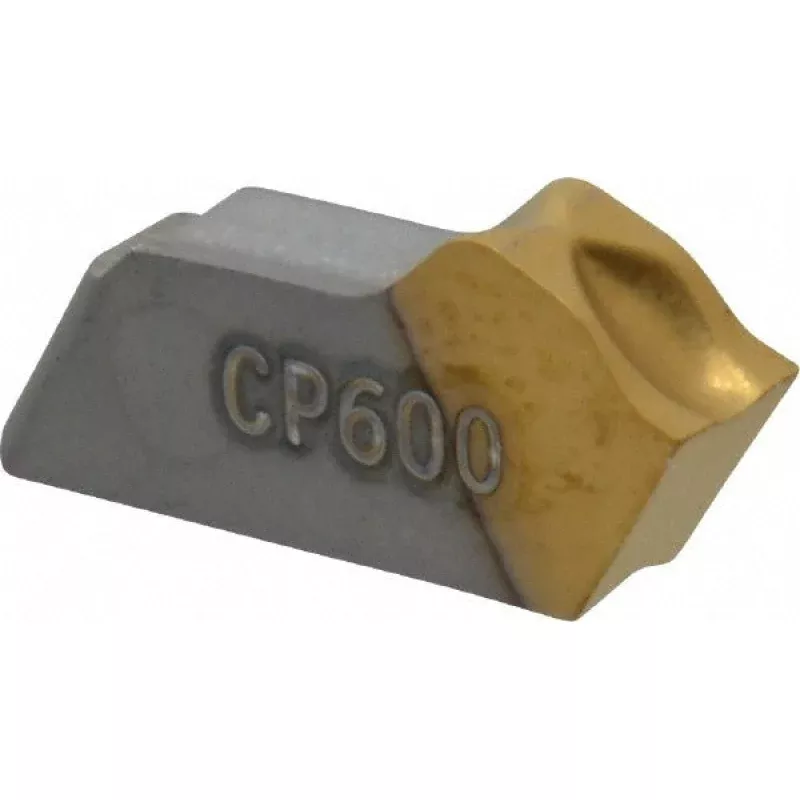

The SECO 00048846 is a solid carbide cutoff insert designed for parting and grooving operations on CNC lathes and turning centers. Manufactured to Series 150.10 specifications, it features a 0.122-inch cutting width and a TiAlN/TiN PVD coating that extends tool life across a broad range of workpiece materials. The insert carries a CP600 manufacturer grade and a 0.008-inch corner radius, making it suited for moderate-to-high-speed cutoff applications where edge integrity and dimensional consistency are priorities. Machining technicians and toolroom professionals install this insert using a clamp-style holder compatible with the Series 150.10 system.
This insert is intended for cutoff and parting operations in general-purpose turning applications. It is rated for universal primary workpiece material compatibility, meaning it performs across steel, stainless, cast iron, and non-ferrous alloys without requiring a grade change. The neutral lead angle and neutral hand orientation allow it to fit both left-hand and right-hand setups. It is a single-end insert, so once the cutting edge is spent, the insert is replaced rather than indexed. Typical use cases include bar-fed turning cells, Swiss-type turning, and conventional lathe parting where clean, burr-minimized cutoff is required.
Key Features
- Solid carbide construction with CP600 grade for wear resistance and edge stability
- TiAlN/TiN PVD coating improves heat resistance and extends tool life
- 0.122-inch cutting width for precise parting and grooving operations
- 0.008-inch corner radius reduces stress concentration at the cutting edge
- Neutral lead angle and neutral hand orientation for flexible setup in left- or right-hand holders
- Clamp-style holding method for secure, repeatable insert positioning
Compatibility
Designed for use with Series 150.10 clamp-style cutoff toolholders. Insert size code 3 applies. Verify holder compatibility with the Series 150.10 system before ordering.
Installation Notes
This insert is installed by a machinist or toolroom technician using the appropriate Series 150.10 clamping toolholder. Ensure the machine spindle is stopped and the tool turret is indexed to a safe position before changing inserts. Use clean seating surfaces on the holder pocket to maintain dimensional accuracy. Handle carbide inserts carefully to avoid chipping the cutting edge prior to use.
Technical Specifications
- Series: 150.10
- Manufacturer Grade: CP600
- Material Grade: C5
- Insert Material: Solid Carbide
- Coating/Finish: TiAlN/TiN
- Coating Process: PVD
- Cutting Width: 0.122 inches
- Corner Radius: 0.008 inches
- Overall Length: 0.354 inches
- Lead Angle: 0 degrees (Neutral)
- Relief Angle: 0 degrees
- Insert Hand: Neutral
- Insert Size Code: 3
- Chipbreaker: 14
- Insert Holding Method: Clamp
- Single or Double End: Single
- Width Tolerance: 0.003 inches
- Primary Workpiece Material: Universal
- Cutting Tool Application: Cut-off
- Weight: 0.04 pounds
- Package Quantity: 1
- Minimum Order Quantity: 10
Standard Information
- Brand: SECO
- Manufacturer Part Number: 00048846
