Name: Seco 00039915 Milling Insert XOEX180616FR-E10 H25 Carbide
Brand: goodpoolzoneus.com
SKU: T7999573
Price: 59.78 USD
Availability: InStock

Product Description

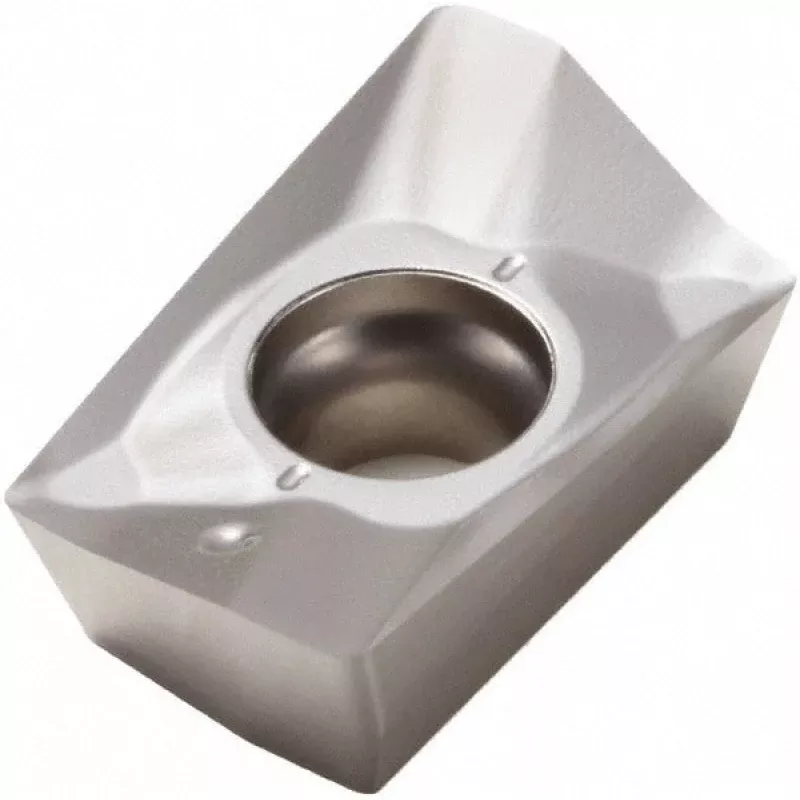

The SECO 00039915 is a solid carbide milling insert carrying the ANSI/ISO designation XOEX180616FR-E10 and manufactured to grade H25 with a micrograin substrate. The insert features an uncoated bright finish, a parallelogram shape with a 90-degree included angle, and a positive rake geometry at 30 degrees. With a sharp cutting edge style and an E10 chip breaker, it is engineered for high-shear, low-force cutting applications. Two cutting edges are available per insert. This style is installed by CNC machinists and toolroom technicians in milling operations requiring precise chip control and a clean edge finish.

This insert is designed for milling non-ferrous metals and superalloys including titanium. The positive rake angle and uncoated carbide substrate make it well suited to applications where coating adhesion or thermal softening is a concern, such as cutting aluminum, copper alloys, and nickel-based superalloys. It is a right-hand insert, single-sided, and held in the cutter body by a screw. The E10 chip breaker geometry supports consistent chip evacuation during face milling and shoulder milling operations.

Key Features

H25 micrograin solid carbide grade optimized for non-ferrous metals and superalloys including titanium
Bright uncoated finish prevents built-up edge when machining aluminum and other non-ferrous workpieces
Positive 30-degree rake angle reduces cutting forces and heat generation at the edge
E10 chip breaker promotes reliable chip formation and evacuation
Sharp cutting edge style with 0.0630-inch corner radius for clean surface finish
Compatible with SECO cutter series R217.69-18 and R220.69-18
Right-hand, single-sided design with screw-clamp insert holding

Compatibility

Compatible with SECO cutter series R217.69-18 and R220.69-18. The ANSI and ISO code for this insert is XOEX180616FR-E10, series XOEX-18.

Installation Notes

Installation is performed by a qualified machinist or CNC toolroom technician. Disengage the machine spindle and follow lockout/tagout procedures before seating or removing inserts. Use the appropriate torx or hex key to secure the clamping screw to the cutter body pocket do not overtighten. Inspect the pocket seating surface for chips or damage before installing a new insert to ensure proper contact and runout.
