Product Description

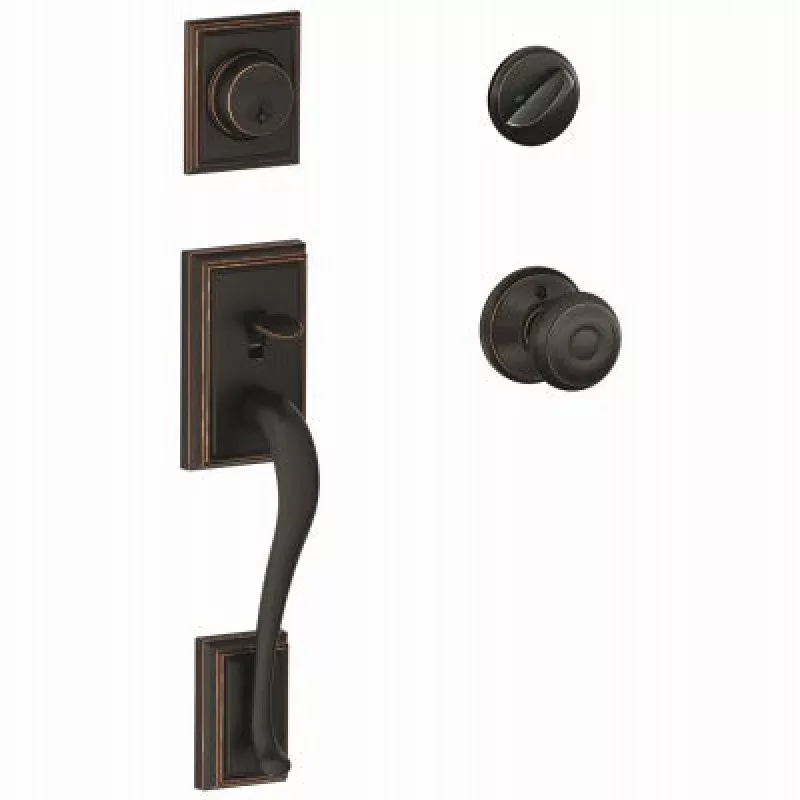

The SCHLAGE LOCK CO F60VADDXGEO716 is a single cylinder entrance handleset in an aged bronze finish, combining the Addison lever with the Georgian decorative plate. It is designed for exterior entry doors in residential applications. The handleset includes a deadbolt that is thrown or retracted by key from the outside or by a turn unit from the inside, and a latch that is retracted by thumb piece from the outside or by the interior knob. The adjustable deadbolt and latch accommodate either 2-3/8-inch or 2-3/4-inch backsets. A licensed locksmith or general contractor typically handles installation, though many experienced trades complete entrance lock work as part of broader construction or renovation projects.
This handleset is suited for single-family residential front entry doors with a door thickness range of 1-5/8 inches to 1-3/4 inches. The dual option latch features a radius corner and drive-in mounting style, giving installers flexibility without additional hardware. The 5-pin tumbler C keyway meets ANSI Grade 2 security standards, making it appropriate for standard residential entry points where a balance of style and security is required.
Key Features
- Single cylinder deadbolt operated by key from outside or thumb turn from inside
- Latch retracted by exterior thumb piece or interior knob
- Adjustable backset fits 2-3/8-inch or 2-3/4-inch backset configurations
- Dual option latch with radius corner and drive-in installation style
- Compatible with door thickness of 1-5/8 inches to 1-3/4 inches
- 5-pin tumbler C keyway, ANSI Grade 2 rated
- Aged bronze finish on Addison lever with Georgian decorative plate
Compatibility
Designed for single-cylinder residential entry door applications with doors ranging from 1-5/8 inches to 1-3/4 inches thick and backsets of either 2-3/8 inches or 2-3/4 inches.
Installation Notes
Installation is typically performed by a licensed locksmith, carpenter, or general contractor. Before beginning, ensure the door is unpowered and all existing hardware is removed. Use a hole saw and chisel set sized to the door prep requirements for the latch and deadbolt bores. Follow local building codes for exterior entry door hardware requirements.
Technical Specifications
- Finish: Aged Bronze (716)
- Lock Type: Single Cylinder Entrance Handleset
- Backset Options: 2-3/8 inches or 2-3/4 inches (adjustable)
- Door Thickness Range: 1-5/8 inches to 1-3/4 inches
- Latch Style: Dual Option, Radius Corner, Drive-In
- Keyway: 5-Pin Tumbler C Keyway
- ANSI Grade: Grade 2
- Package Quantity: 1
- Weight: 6.88 pounds
Standard Information
- Brand: SCHLAGE LOCK CO
- Manufacturer Part Number: F60VADDXGEO716
