Product Description

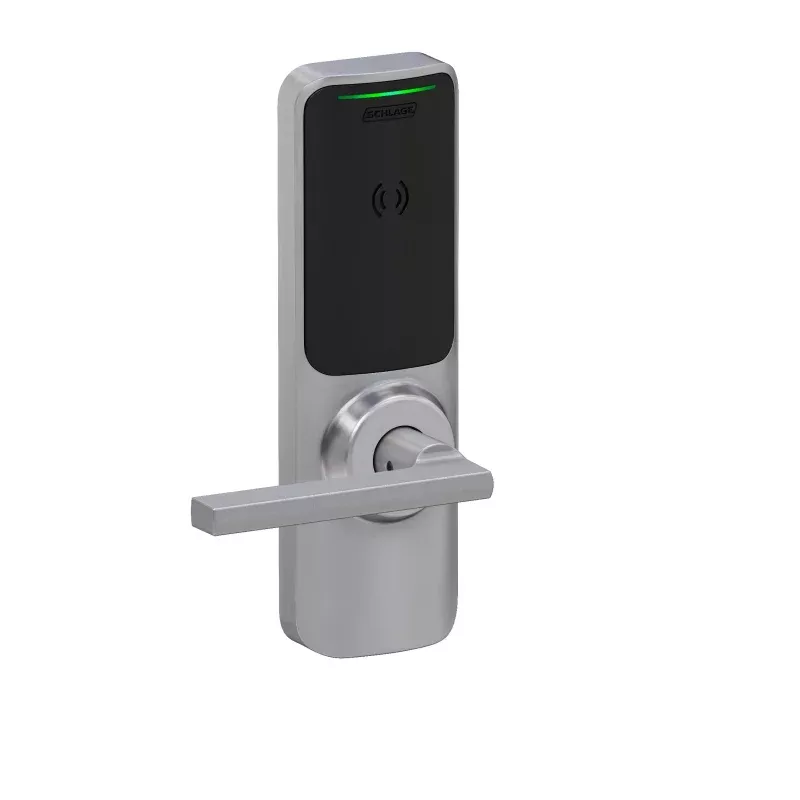

The SCHLAGE ELECTRONICS XE360MOFBSMP6LAT626 is a wireless mortise lock from the XE360 Series, designed for offline access control applications in commercial and institutional environments. It features an offline push button function paired with a Smart Mobile Reader, allowing credential management without a hardwired network connection. The Latitude lever trim and 6-pin C keyway provide mechanical key override capability. The satin chrome (626) finish suits high-traffic interior and exterior door applications. Licensed locksmiths, access control technicians, and commercial security integrators are the primary installers.
This lock is suited for commercial buildings, multi-family properties, and institutional facilities where wireless access control is needed without the cost of full network infrastructure. The offline push button operation makes it practical for interior doors, stairwells, storage rooms, and similar openings where periodic credential updates via mobile device are acceptable. The Smart Mobile Reader supports mobile credential delivery, reducing the need for physical key management in larger facilities.
Key Features
- Offline push button access control function eliminates continuous network dependency
- Smart Mobile Reader enables credential management via mobile device
- Mortise lock body provides heavy-duty, commercial-grade door security
- Latitude lever trim with 6-pin C keyway for mechanical key override
- Satin chrome (626) finish for corrosion resistance and professional appearance
- XE360 Series wireless platform supports scalable access control deployment
Compatibility
Designed as an OEM-style replacement and direct-fit option for commercial mortise lock applications within the XE360 Series wireless access control platform.
Installation Notes
Installation should be performed by a licensed locksmith or qualified access control technician familiar with commercial mortise lock preparation and low-voltage electronic hardware. Power down or disconnect any existing electronic hardware before beginning work on the door prep or wiring connections. Verify door thickness, backset, and mortise pocket dimensions against manufacturer requirements before installation. Follow all applicable local building codes and access control system configuration procedures when programming credentials.
Technical Specifications
- Series: XE360
- Function: Offline Push Button with Smart Mobile Reader
- Lock Type: Wireless Mortise Lock
- Lever Style: Latitude
- Keyway: 6-Pin C
- Finish: Satin Chrome (626)
- Length: 15.75 inches
- Width: 12 inches
- Height: 4 inches
- Weight: 9.2 pounds
- Sold As: Each
Standard Information
- Brand: SCHLAGE ELECTRONICS
- Manufacturer Part Number: XE360MOFBSMP6LAT626
