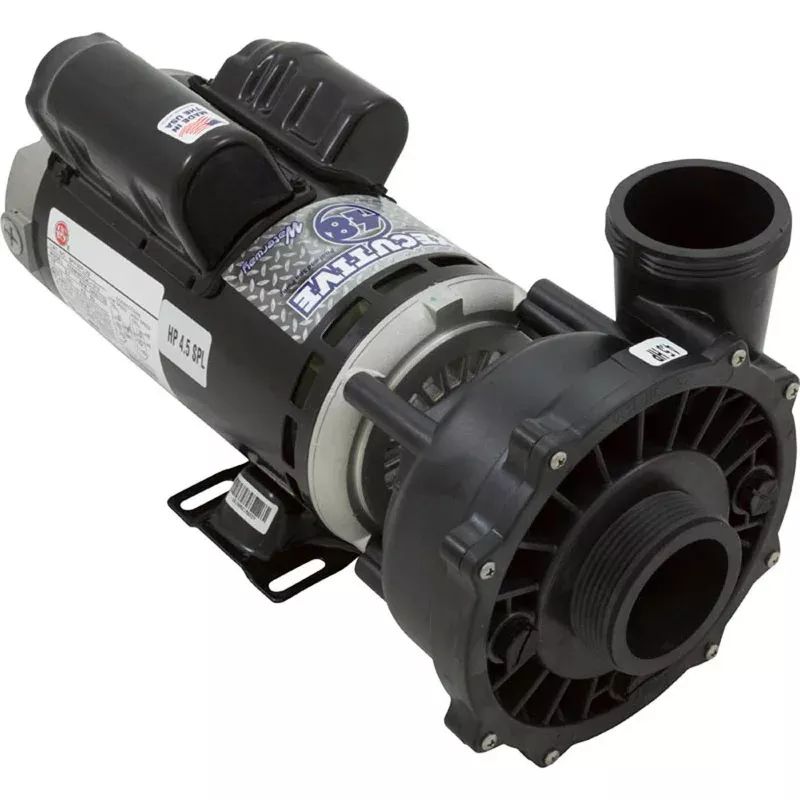

The Waterway Executive 48 pump is thermally protected to extend the life expectancy of the motor with a highly versatile wet end.
Spa Pump Product Features:
- Executive wet end designed specifically for 48-frame motors.
- Large 6-1/2″ diameter wet end for higher head pressure.
- 2″ intake and discharge.
- Wet end can be rotated for easy installation.
- Thermally protected to extend life expectancy of motor.
- Dimensions (H x W x L): 8.34″ x 8.13″ x 16.70″.
- 4.5Hp and dual speed.
- California Title 20 Compliant.
Product Specifications:Speed2 Speed (2-Spd)Motor Voltage230vDrain Plug Location3,6,9 o`clockPump to Motor Foot Types4aSuction StyleCenterSuction Connection (Physical Dimension)3-1/16″odSuction Connection TypeMale Buttress Thread (mbt)Suction Pipe Size2″Discharge StyleSideDischarge Connection (Physical Dimension)3-1/16″odDischarge Connection TypeMale Buttress Thread (mbt)Discharge Pipe Size2″Horsepower4.5SPLMotor Frame48 Frame Thru-BoltMotor Amperage/Wattage12.7A/3.4AManufacturerWaterwayPump ModelExecutiveManufacturer Impeller Number310-4200 (3.0hp)Volute Fastening Type8 ScrewsVolute/Sealplate Number315-1240Manufacturer Wet End Number310-1910
