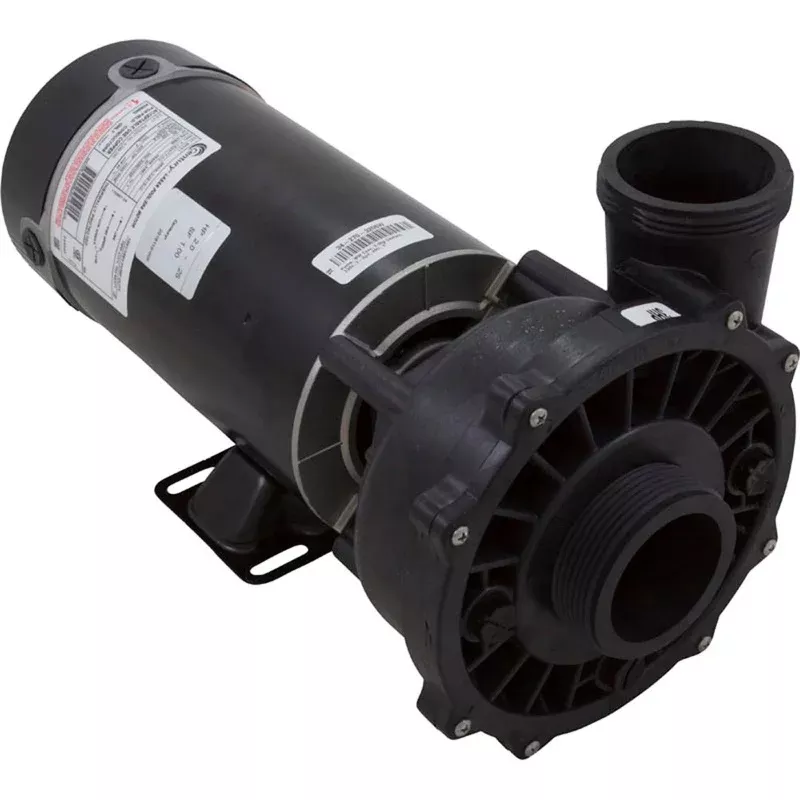

Pump, WW Exec, 2.0hp Century, 230v, 2-Speed, 48fr, 2″
When matching pumps always use AMPERAGE rather than Horsepower. Many times the labeled Horsepower does not accurately represent actual horsepower.
The Waterway Executive 48 pump is thermally protected to extend the life expectancy of the motor with a highly versatile wet end.
Spa Pump Product Features:
- Executive wet end designed specifically for 48-frame motors.
- Large 6-1/2″ diameter wet end for higher head pressure.
- 2″ intake and discharge.
- Wet end can be rotated for easy installation.
- Thermally protected to extend life expectancy of motor.
- Dimensions (H x W x L): 8.34″ x 8.13″ x 13.95″.
- 2.0hp and Dual Speed.
- California Title 20 Compliant.
Product Specifications:Complete Pump TypePortable Spa PumpSpeed2 Speed (2-Spd)Motor Voltage230vDrain Plug Location3,6,9 o`clockPump to Motor Foot Types4aSuction StyleCenterSuction Connection (Physical Dimension)3-1/16″odSuction Connection TypeMale Buttress Thread (mbt)Suction Pipe Size2″Discharge StyleSideDischarge Connection (Physical Dimension)3-1/16″odDischarge Connection TypeMale Buttress Thread (mbt)Discharge Pipe Size2″Horsepower2.0hpMotor Frame48 Frame Thru-BoltMotor Amperage/Wattage10.5A/2.6AManufacturerWaterwayPump ModelExecutiveManufacturer Impeller Number310-4210 (2.0hp)Volute Fastening Type8 ScrewsVolute/Sealplate Number315-1240Manufacturer Wet End Number310-1900
