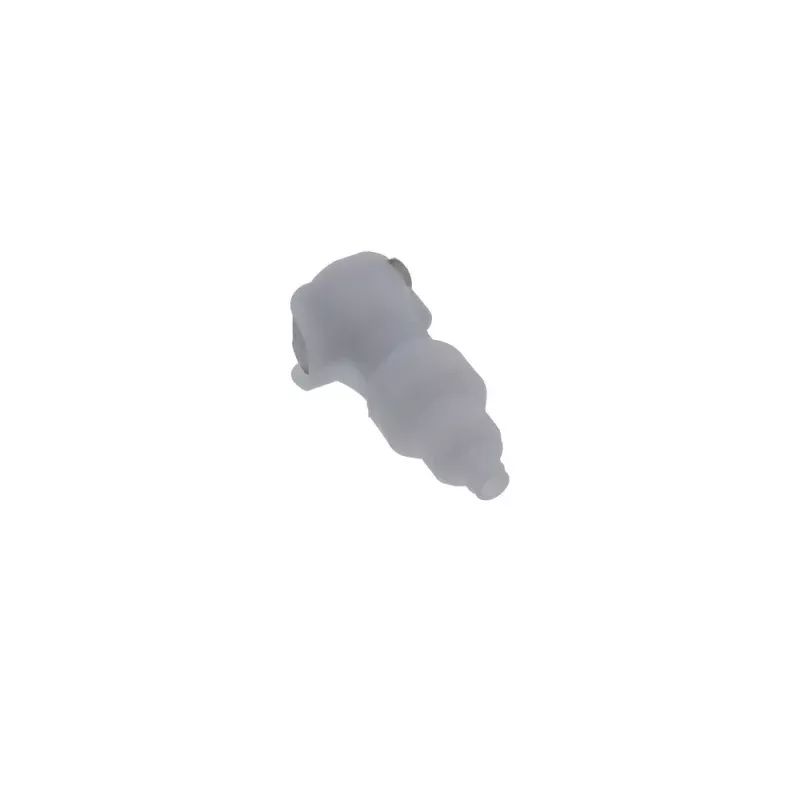

The PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.
Specifications:
- Material: Acetal
- Color: White
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Tubing Size: 8mm PTF
- Temperature Range: -40F to 180F
- Valve Spring: 316 Stainless Steel
- Seal Options: Buna-N
- Available in Bags of 25 units
- NSF Listed Version (part 24300) Available Upon Request
