The Pioneer PKW-3/8-5/8-16 16-Foot Copper Piping Mini Split Installation Kit is a great tubing option for your heat pump and air conditioner setup at home.
Mini-split installations are home heating and cooling solutions allowing temperature control in individual rooms or spaces. This installation kit provides all the elements needed to easily install money-saving units. With a pre-drilled 3-inch hole for cables, tubes, and wiring, this mini-split copper piping mini-split installation kit will help you control costs in non-ducted spaces, or areas where extending ductwork isn’t feasible. This mini-split installation kit links the outdoor and indoor units.

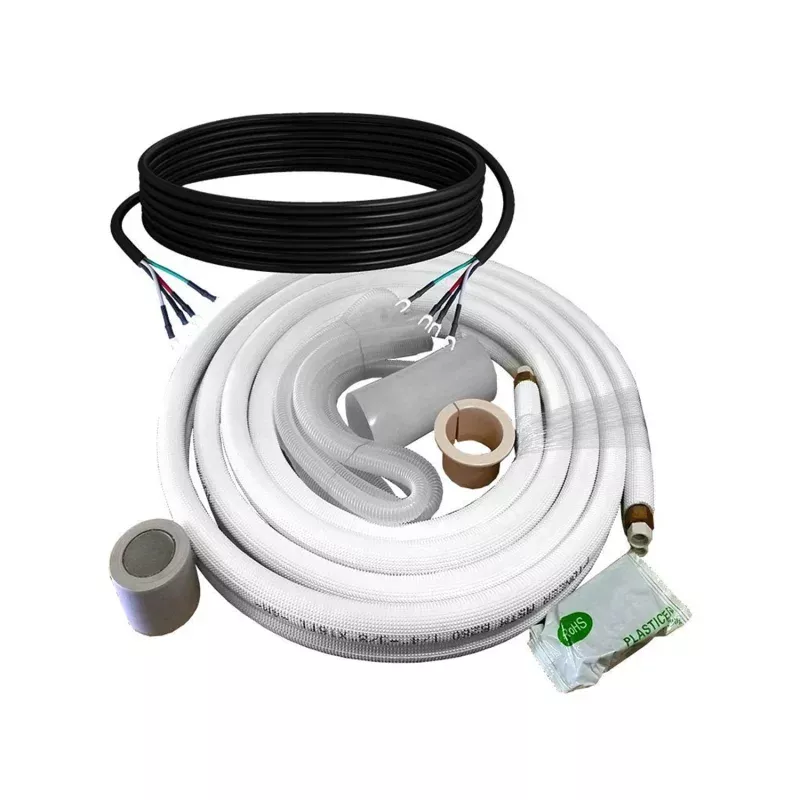

This particular kit includes copper pipes, 3-layer insulation, and brass flare nuts. It also comes with insulated pre-flared copper refrigerant pipes, 4-lead wire for communication between the indoor and outdoor unit, 16-foot condensate drain hose, a wall passage sleeve with cap and putty, and tape.
Whether self-installing or using a recommended professional, the Pioneer PKW-3/8-5/8-16 16-Foot Copper Piping Kit has everything necessary for a mini-split air conditioning and heat pump unit installation.
- 3/8 to 5/8-inch installation kit for 24,000 BTU and above models complies with ASTM-B280 standards
- High quality full copper piping set comprised of dehydrated soft-drawn copper
- 3-layer waterproof insulated pre-flared copper refrigerant pipes
- 16-gauge 4-lead communication wire between indoor and outdoor unit
- Brass flare nuts on ready-formed flare ends for easy hook up
- Wall passage sleeve with cap and putty with plastic dust caps to protect during installation
- 2-inch wide, 50-feet length Non-adhesive wrapping tape
- 16-foot condensate drain hose
- Professional installation recommended for Pioneer air conditioner heat pump units
- Color: White, copper
- Material: Plastic, metal, copper
- Dimensions (L x W): 192 x 3/8 to 5/8 inches
- Weight: 11 pounds
- Warranty: 5-year warranty
