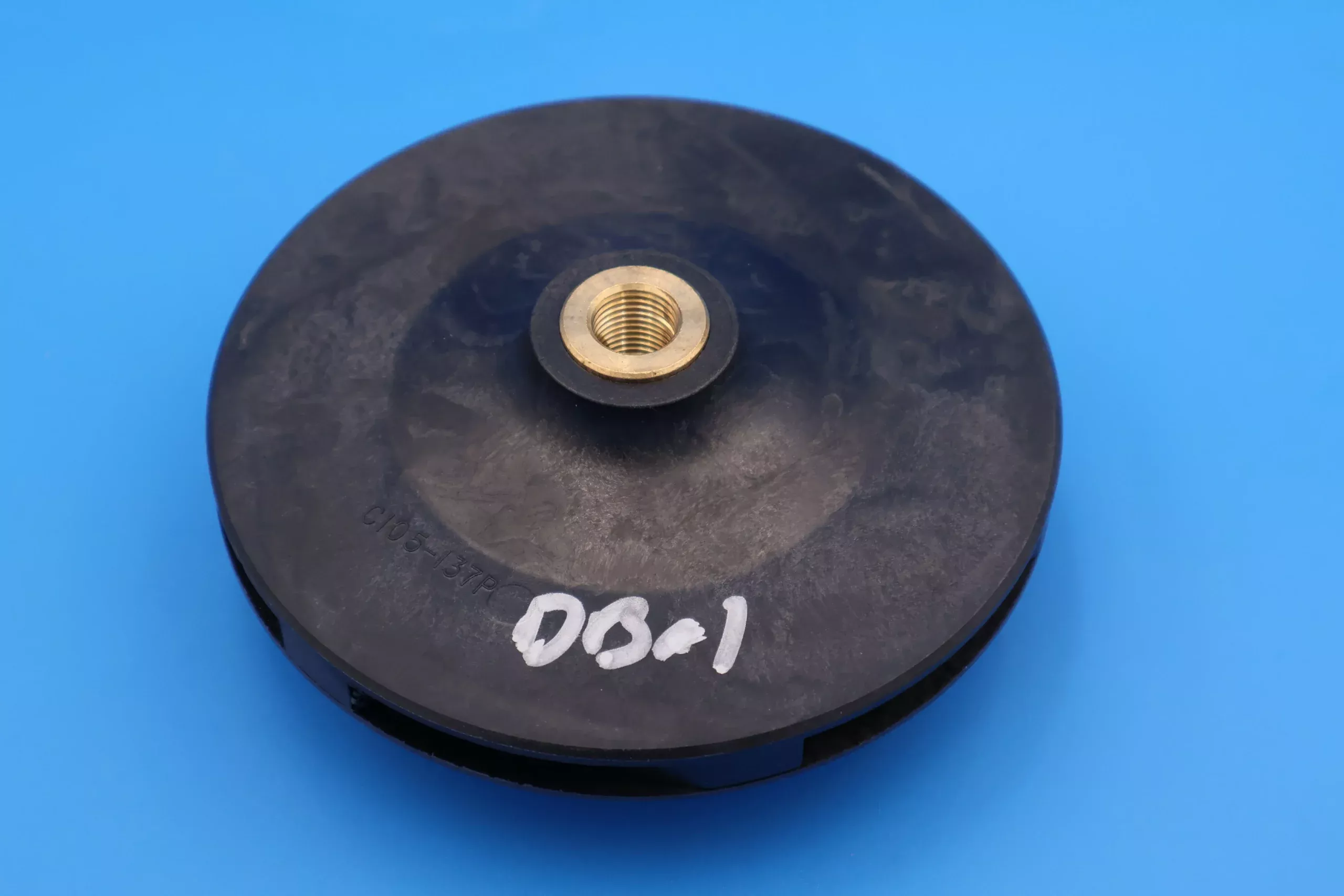

Pentair / Sta-Rite C105-137PDBA Impeller (1.5 HP Full-Rated / 2.0 HP Up-Rated) for Max-E-Glas & Dura-Glas Pumps
The Pentair / Sta-Rite C105-137PDBA is an OEM closed-face impeller designed for select Sta-Rite Max-E-Glas and Dura-Glas in-ground pool pump wet ends. This impeller is commonly specified for 1.5 HP full-rated or 2.0 HP up-rated pump configurations (application-dependent) and threads onto the pump motor shaft to generate water flow and pressure.
Key Details
- Manufacturer: Pentair / Sta-Rite
- Part Number: C105-137PDBA
- Impeller Style: Closed-face
- Rating: 1.5 HP full-rated / 2.0 HP up-rated (match to your exact pump/motor configuration)
- Common Pump Families: Sta-Rite Max-E-Glas and Dura-Glas (in-ground)
- Fastening: Uses an impeller screw (commonly specified as C3012, sold separately)
What This Impeller Does
- Transfers motor power to moving water to produce pump flow and pressure.
- Works with the diffuser to direct water efficiently through the volute and out to your plumbing.
- Restores performance when the original impeller is worn, cracked, debris-damaged, or stripped at the hub.
Common Compatibility Notes
- Used on select Sta-Rite Max-E-Glas and Dura-Glas full-rate pump models that specify C105-137PDBA in the parts breakdown.
- Best practice: match the impeller part number from your pump model’s parts diagram, or compare the old impeller to confirm correct HP rating and screw-style design.
When to Replace
- Reduced flow/pressure after the basket and suction path are confirmed clear
- Cracked hub, broken vanes, or visible wear at the impeller eye
- Impeller stripped on the shaft or seized from debris
- Persistent rattling/grinding traced to wet-end damage
Installation Notes
- Disconnect power at the breaker and relieve system pressure before opening the pump.
- Replace the mechanical shaft seal whenever the impeller is removed to help prevent leaks into the motor.
- Inspect the diffuser and volute for cracks, scoring, or debris damage that can reduce performance or cause repeat failures.
- Use the correct impeller screw if your pump configuration requires it (sold separately); do not reuse a corroded or stripped screw.
- Tighten components evenly during reassembly to avoid pinched O-rings and air leaks.
Related Products (Aqua Pool Supply)
- Sta-Rite Max-E-Glas diffusers
- Sta-Rite Dura-Glas diffusers
- Sta-Rite Max-E-Glas shaft seals
- Sta-Rite Dura-Glas shaft seals
- Sta-Rite Max-E-Glas lid O-rings
- Sta-Rite Dura-Glas lid O-rings
- Sta-Rite impeller screws
Maintenance Tip
Most impeller problems start with restricted suction or debris bypassing the basket. Keep the pump basket clean, maintain proper pool water level, and address suction-side air leaks early to reduce cavitation and protect the impeller, diffuser, and shaft seal.
