Product Description

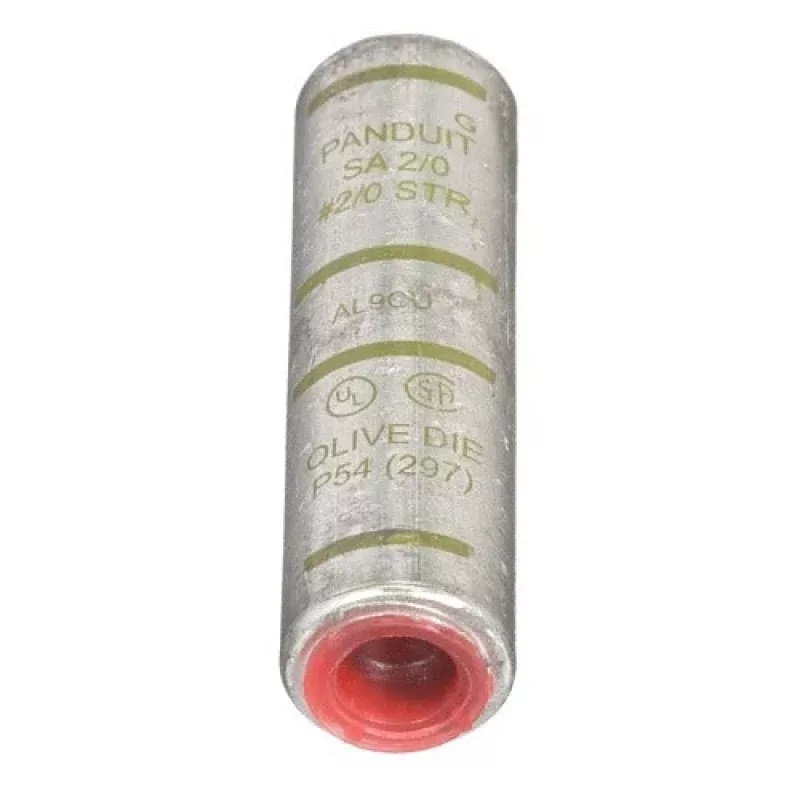

The PANDUIT SA2/0-L is an aluminum compression splice connector designed to join two aluminum conductors in a permanent, low-resistance connection. Compression splices of this type are installed by crimping with a calibrated compression tool, creating a cold-weld bond that meets the mechanical and electrical demands of power distribution wiring. The SA2/0-L is sized for 2/0 AWG aluminum conductor and is sold as a single unit. Electricians and linemen use this fitting in conduit runs, service entrance work, and feeder circuits where aluminum conductors must be spliced end-to-end.
This splice is suited for residential and light commercial electrical installations where aluminum feeder or service-entrance conductors require a code-compliant inline splice. Typical applications include panel feeder extensions, meter base connections, and utility service work. The compression design eliminates the need for split-bolt connectors or mechanical set-screw hardware, reducing the chance of conductor damage during installation.
Key Features
- Aluminum construction matches the thermal expansion characteristics of aluminum conductors, reducing long-term joint loosening
- Compression-style installation creates a permanent, gas-tight cold-weld connection without heat or solder
- Sized for 2/0 AWG aluminum conductors for consistent, repeatable crimps
- Single-unit packaging allows procurement of exact quantities needed per job
- Low-profile barrel design supports installation inside conduit bodies and junction boxes
Compatibility
Designed as an OEM-style compression splice for 2/0 AWG aluminum conductors used in residential and commercial power distribution feeder and service-entrance applications.
Installation Notes
Installation must be performed by a licensed electrician in accordance with NEC requirements for aluminum conductor terminations and splices. De-energize and lock out the circuit completely before making any connections. Use a calibrated compression tool with the die set specified for this connector size to achieve a proper cold-weld crimp. Apply an oxide-inhibiting compound to aluminum conductor ends before insertion to prevent oxidation buildup at the joint over time.
Technical Specifications
- Conductor Size: 2/0 AWG
- Conductor Material Compatibility: Aluminum
- Connection Type: Compression crimp
- Unit of Measure: Each (1 piece per unit)
Standard Information
- Brand: PANDUIT
- Manufacturer Part Number: SA2/0-L
