Product Description

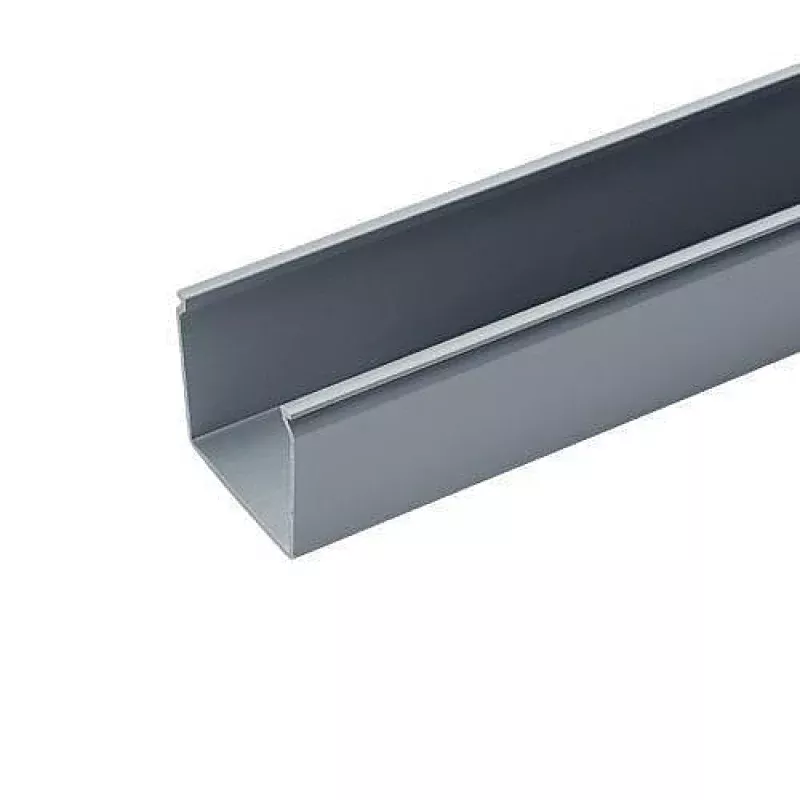

The PANDUIT FS4X2LG6NM is a solid PVC wire raceway designed to route and protect electrical cables and conductors in commercial and industrial wiring installations. Measuring 4 inches wide by 2 inches deep and 6 feet in length, this raceway provides substantial capacity for managing medium-to-high wire densities. Constructed from rigid PVC, it offers a durable, non-conductive enclosure that resists moisture and common shop-floor chemicals. The light gray finish suits standard electrical room and panel environments. Licensed electricians and electrical contractors are the primary installers of this product.
This solid raceway is suited for use in commercial buildings, industrial facilities, data centers, and electrical rooms where organized cable management is required. It is typically mounted on walls or structural surfaces to run power, control, and low-voltage wiring in an orderly, accessible manner. The solid construction keeps cables enclosed and protected from physical damage. It is sold as an individual 6-foot section, allowing installers to cut and configure runs to match specific layout requirements.
Key Features
- Solid PVC construction provides a rigid, non-conductive cable enclosure
- 4-inch width by 2-inch depth interior accommodates high wire fill capacity
- 6-foot section length allows flexible layout planning and field cutting
- Light gray color finish blends with standard electrical installation environments
- Moisture and chemical resistant PVC material suits demanding installation locations
Compatibility
Designed as an OEM-style raceway section compatible with PANDUIT FS-series raceway fittings, covers, and accessories designed for 4×2 inch raceway systems.
Installation Notes
Installation is typically performed by a licensed electrician in accordance with NEC Article 362 governing electrical nonmetallic tubing and raceway systems. De-energize all circuits in the work area before mounting or wiring the raceway. The raceway section can be cut to length with a fine-tooth saw and secured to surfaces using appropriate mounting hardware. Do not over-fill the raceway beyond the rated wire-fill capacity specified by NEC guidelines.
Technical Specifications
- Material: PVC
- Width: 4 inches
- Depth: 2 inches
- Length: 6 feet
- Color: Light Gray
- Unit of Measure: Each
- Quantity Per Unit: 1
Standard Information
- Brand: PANDUIT
- Manufacturer Part Number: FS4X2LG6NM
