Product Description

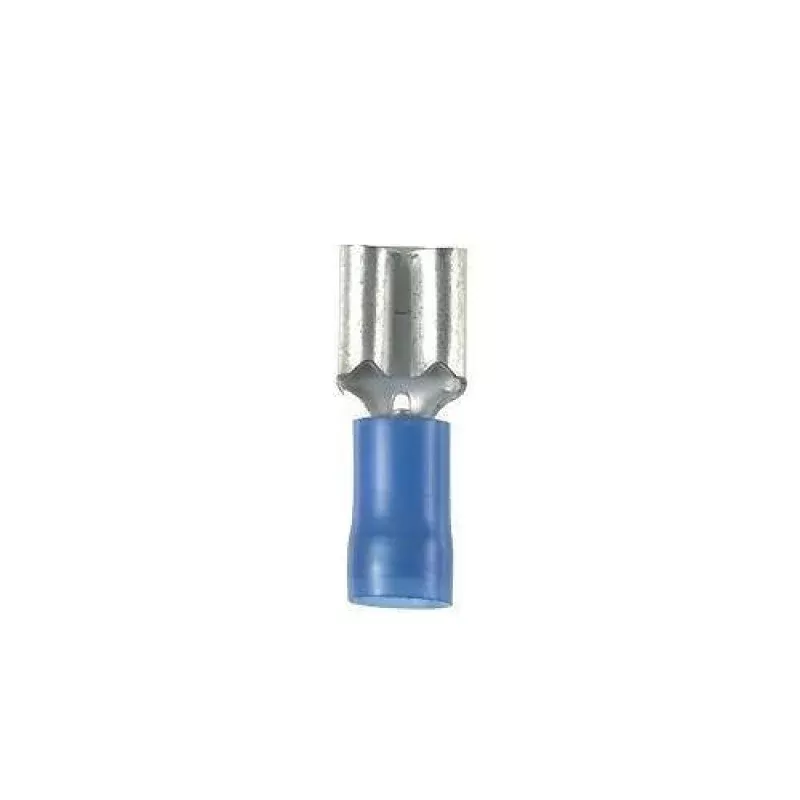

The PANDUIT DNF14-110-C is a nylon-insulated female disconnect terminal designed for secure, vibration-resistant electrical connections in control panels, equipment wiring, and general electrical assemblies. The nylon barrel insulation provides reliable dielectric protection at the connection point, helping to prevent shorts and abrasion damage in bundled wire harnesses. This type of terminal is installed by licensed electricians, HVAC technicians, and electrical assembly professionals who require a dependable, tool-crimped quick-disconnect fitting for low-voltage control wiring applications.
The DNF14-110-C is suited for residential and light commercial electrical work, control panel wiring, appliance repair, and HVAC low-voltage harness terminations. The female disconnect accepts a standard 0.110-inch tab male connector, making it a common choice for wiring spade-terminal connections on contactors, relays, and control board headers where a removable, insulated termination is preferred over soldered joints.
Key Features
- Nylon barrel insulation for dielectric protection and abrasion resistance
- Female disconnect design accepts standard 0.110-inch tab connectors
- Crimp-style installation compatible with standard terminal crimping tools
- Single-unit packaging suitable for repair and low-quantity service work
- Suitable for control wiring, panel assembly, and harness termination applications
Compatibility
Designed as an OEM-style replacement and general-use female disconnect terminal for 14 AWG wire applications requiring a 0.110-inch nylon-insulated quick-disconnect fitting.
Installation Notes
Installation should be performed by a qualified electrician or trained technician. De-energize the circuit completely before terminating or removing any disconnect terminal. Use a calibrated ratchet crimping tool rated for insulated terminals to ensure a gas-tight crimp; improper crimping tools can result in a high-resistance or pull-out failure. Work in accordance with applicable NEC requirements for terminal and conductor sizing.
Technical Specifications
- Insulation Material: Nylon
- Terminal Type: Female Disconnect
- Tab Size: 0.110 inches
- Unit of Measure: Each
- Quantity Per Pack: 1
Standard Information
- Brand: PANDUIT
- Manufacturer Part Number: DNF14-110-C
