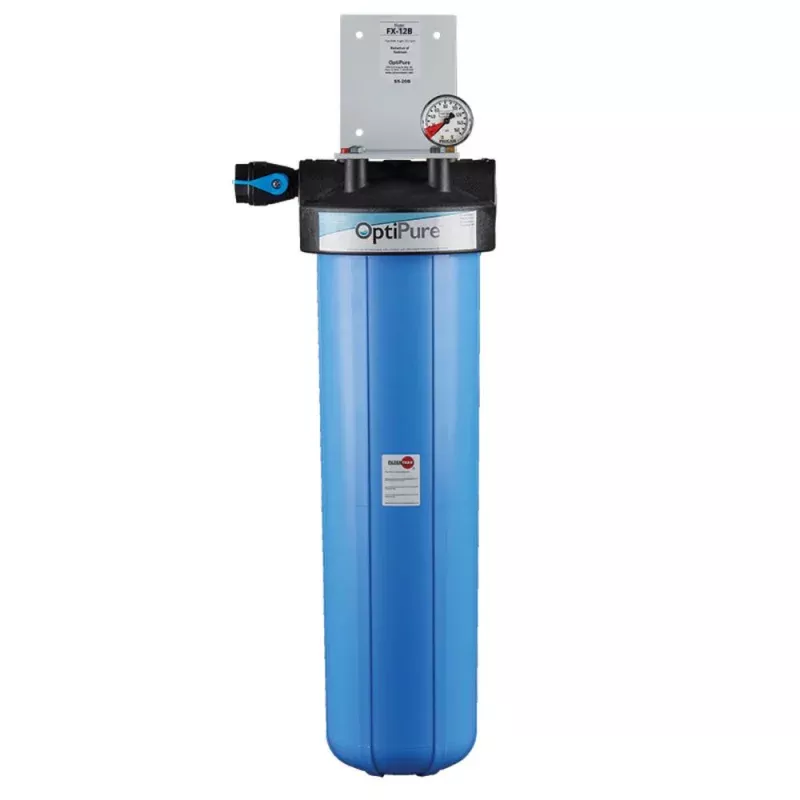

This Optipure 160-50022 FX-12B Single 20″ Systemis a single-housing water treatment system with a drop-in 4.5 x 20 cartridge that reduces sediment down to 5-microns and reduces chlorine, taste & odor at a flow rate of 5.0 gpm for 50,000-gallons.
Features:
- Improves quality and consistency of cold and hot beverages.
- Reduces maintenance frequency and cost, and extends equipment life.
- Gradient-density sediment filtration protects against dirt, rust and other debris down to 0.5-microns.
- High-capacity activated-carbon filtration makes water taste great and protects equipment against corrosive chlorine.
- Sturdy mounting bracket and full-flow inlet shut-off valve simplify installation.
- Inlet shut-off and depressurization valves make filter replacement quick and simple.
- Minimizes waste by only replacing drop-in cartridge and reusing filter sump.
Specifications:
- Connection: Inlet & Outlet 3/4 FNPT
- Operating Pressure Range: 10 – 125 psi (0.7 – 8.6 bar)
- Inlet Water Temperature Range: 35 – 100F (2 – 38C)
- Service Flow Rate:5.0 gpm (18.9 lpm)
- Sediment Reduction: 0.5 microns (nominal)
Installation Tips:
- Feed-water connection to system should be COLD only.
- Do not exceed system specifications for temperature and pressure.
- Allow 3 clearance below system for filter housing removal and cartridge replacement.
- Detailed installation, operation and maintenance manual included with each system.
- No activation procedure or flushing required for system to perform as specified.
