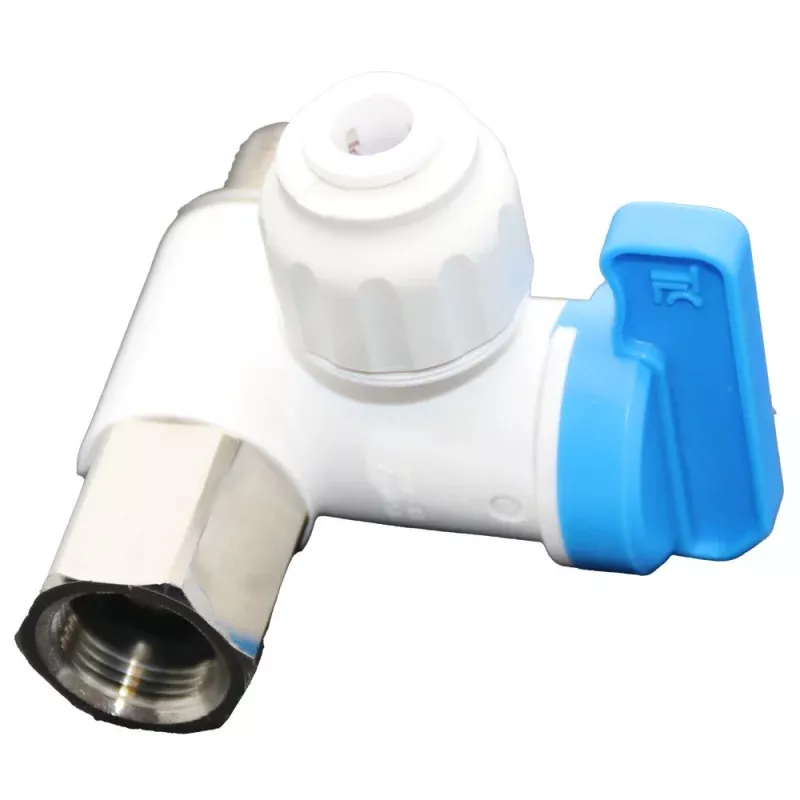

TheNeo-Fit Angle Stop Adapter Valveprovides an easy way to add a water feed supply from an existing chrome supply stop valve. These valves connect between the chrome supply stop and riser to provide a water supply feed line for water filtration systems, RO systems, coffee machines, and ice makers. The Push-fit technology makes installations quick and easy. They are manufactured in Natural White polypropylene with food grade EPDM seals, with plated lead-free brass threads.
Features:
- For use with plastic or copper OD sized tubing
- For cold water supply use only
- Threads onto 3/8 in compression chrome supply stop
- Quarter turn to open or close
- Natural White Polypropylene body, EPDM seals
- Lead Free materials
- Quick and easy connection/disconnection
- NSF51 and NSF61 listed
- Not suitable for compressed air, explosive gases, petroleum spirits and other fuels or for heating systems
Working pressure & temperature:
- Max 150 psi at 70F
- Max 60 psi at 140F
Do Not Use these Valves:
- In a partially open position to control flow
- To provide a permanent termination
- Without tubing assembled or plugged (or threaded connections sealed)
- As a tap of faucet
Fittings Comparison
| Size | NEO: Working PSI @ Tempv | JG: Working PSI @ Temp | DM Fit: Working PSI@ Temp | Mur-Lok: Working PSI@ Temp |
|---|---|---|---|---|
| 1/4″ | 150psi @ 68F/ 60psi @ 150F | 150psi @ 70F/ 60psi at 140 | 150psi @ 70F/ 60psi @ 150F | 150psi @ 70F/ 60psi @ 140F |
| 3/8″ | 150psi @ 68F/ 60psi @ 150F | 150psi @ 70F/ 60psi at 140 | 150psi @ 70F/ 60psi @ 150F | 150psi @ 70F/ 60psi @ 140F |
| 1/2″ | 150psi @ 68F/ 60psi @ 150F | 150psi @ 70F/ 60psi at 140 | 150psi @ 70F/ 60psi @ 150F | 150psi @ 70F/ 60psi @ 140F |
| Certifications | NEO: NSF 51 & 61 Certified | JG: NSF 51 & 61 Certified | DM Fit: NSF 51 & 61 Certified | Mur-Lok: NSF 58 & 372 Certified |
| Size | NEO: Max Torque | JG: Max Torque | DM Fit: Max Torque | Mur-Lok: Max Torque |
| 1/4″ | 1ft/lb (1.5nm) | 1ft/lb (1.5nm) | 1ft/lb (1.5nm) | 1ft/lb (1.5nm) |
| 3/8″ | 2ft/lb (3 nm) | 2ft/lb (3 nm) | 2ft/lb (3 nm) | 2ft/lb (3 nm) |
| 1/2″ | 2ft/lb (3 nm) | 2ft/lb (3 nm) | 2ft/lb (3 nm) | 2ft/lb (3 nm) |
