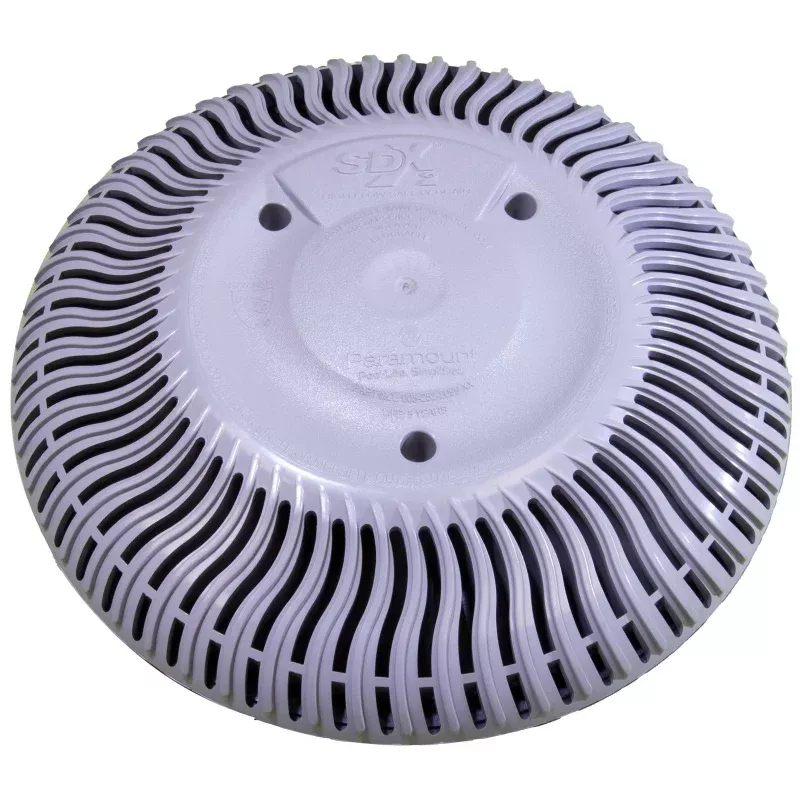

Main Drain Grate, Paramount SDX2, Concrete, Light Gray
Product Features:
- No sump required – time saved there is no need to field fabricate a sump to meet the “1.5 times the pipe diameter” requirement.
- Low velocity 1.396 feet per second at the maximum at the floor (188 gpm) flow rating.
- Patented ribbed design achieves very high flow via 60 independent flow partitions.
- Approved as a bulkhead fitting as the safety is in the cover and backplate.
- Anti-vortex center shield block contact with direction suction.
- SDX2 Comes with a plaster ring for new applications.
- SDX2 Retro comes with an adaptable backplate to retrofit suction fittings up to 10 Inch diameter.
Product Specifications:Cover Size10″Drain/Suction Cover ShapeRoundDrain/Suction Part TypeCover w/FrameColorLight GrayManufacturerParamountStandards ApprovalsANSI/APSP – 16 2011 Listed, VGB Pool & Spa Safety Act
