Product Description

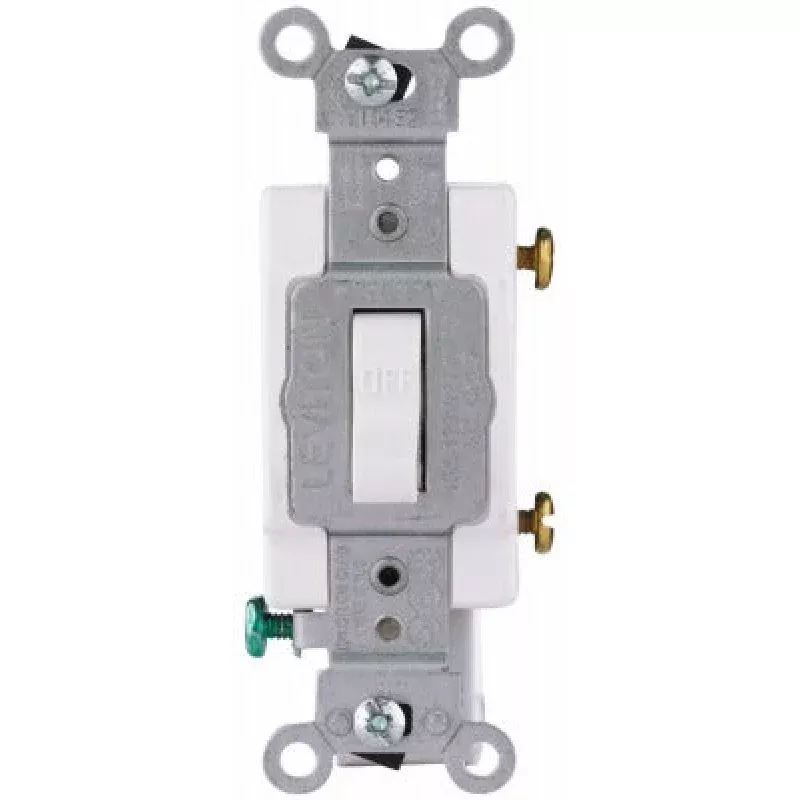

The LEVITON MFG CO S02-CS115-2WS is a commercial specification grade single pole toggle switch designed to control one fixture from a single location. Built for demanding environments, it features large silver-cadmium oxide contacts rated for long service life and heavy-gauge rust-resistant steel mounting strap construction. Captive mounting screws and large-head terminal screws backed out and staked allow fast side wiring of up to No. 10 copper wire. Licensed electricians install this switch in commercial and institutional wiring applications. This package contains 10 switches.
The S02-CS115-2WS is suited for commercial and institutional electrical installations where specification grade components are required. Typical applications include municipal facilities, government buildings, shopping malls, department stores, hospitals, office buildings, and schools. The white finish integrates cleanly with standard commercial wallplates. Break-off plaster ears allow precise alignment in both new-construction and retrofit box installations, making this switch a standard choice for commercial electrical contractors and maintenance electricians.
Key Features
- Commercial specification grade construction for demanding institutional and municipal applications
- Large silver-cadmium oxide contacts for extended contact life under repeated switching cycles
- Captive mounting screws speed up installation and reduce dropped hardware on the job
- Large-head terminal screws backed out and staked for fast side wiring of up to No. 10 copper wire
- Heavy-gauge rust-resistant steel mounting strap with break-off plaster ears for precise box alignment
- UL listed with a limited 10-year warranty
Compatibility
Designed as a specification grade single pole toggle switch for commercial-grade electrical wiring systems. Compatible with standard single-gang electrical boxes and commercial wallplates. Controls one fixture from a single switching location.
Installation Notes
Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Turn off the circuit breaker and verify power is off with a non-contact voltage tester before wiring. Side-wiring terminals accept up to No. 10 copper wire. Break-off plaster ears should be removed with pliers when a flush mount against the wallplate is required.
Technical Specifications
- Switch Type: Single Pole Toggle
- Grade: Commercial Specification
- Wire Compatibility: Up to No. 10 copper wire
- Contact Material: Silver-cadmium oxide
- Mounting Strap: Heavy-gauge rust-resistant steel
- Color: White
- Package Quantity: 10
- Weight: 1.66 pounds
- Warranty: Limited 10-year
- Certifications: UL Listed
Standard Information
- Brand: LEVITON MFG CO
- Manufacturer Part Number: S02-CS115-2WS
