Product Description

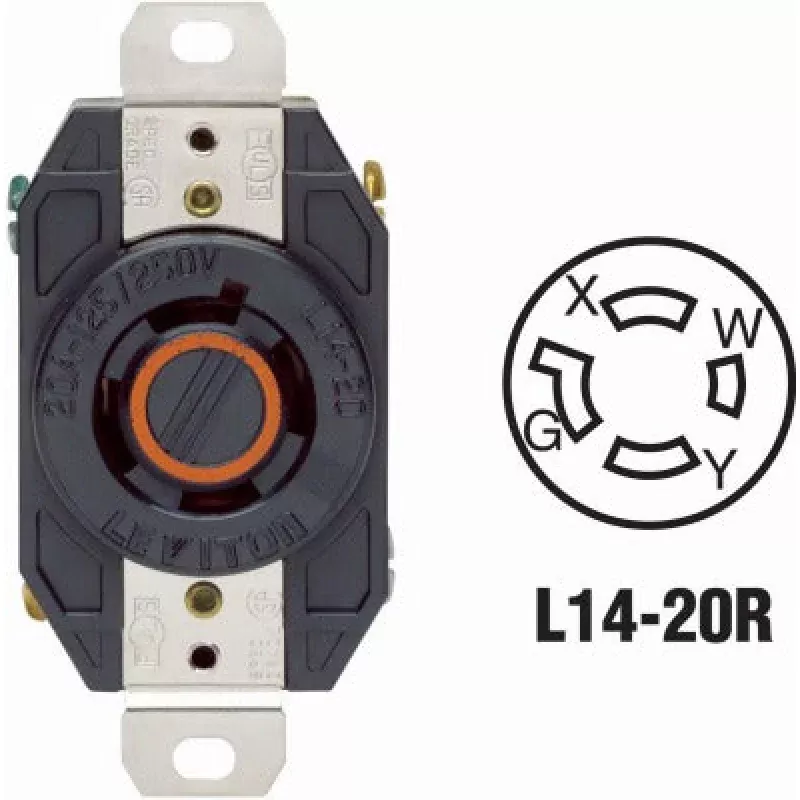

The LEVITON MFG CO 065-02410-000 is an industrial specification grade single locking flush outlet rated at 20 amps. Built for demanding commercial and industrial electrical installations, it features a nickel-plated brass strap, brass ground contacts, and brass line contacts for reliable conductivity and long-term durability. The outlet accepts both polarized and non-polarized plugs, making it adaptable to a range of equipment connections. It is UL listed and CSA approved, meeting standards required for professional electrical work in both U.S. and Canadian jurisdictions. Licensed electricians install this device in applications where a secure, locking connection is required to prevent accidental disconnection.
This outlet is suited for industrial and commercial environments where equipment must remain continuously connected under vibration, high-traffic conditions, or heavy-duty cycling. Typical installations include manufacturing floors, mechanical rooms, data centers, and other facilities where standard straight-blade outlets present a disconnect risk. The flush-mount design integrates with a 1.60 inch diameter wall plate, keeping the installation clean and code-compliant. The package quantity is 10 units per pack, making it practical for multi-outlet rough-in work.
Key Features
- 20-amp locking outlet rated for industrial specification grade use
- Nickel-plated brass strap provides corrosion resistance and mechanical strength
- Brass ground and line contacts for low-resistance, durable connections
- Accepts both polarized and non-polarized locking plugs
- UL listed and CSA approved for U.S. and Canadian installations
- Limited lifetime warranty
Compatibility
Designed for use with a 1.60 inch diameter wall plate. Suitable as an industrial specification grade locking outlet replacement or new installation in commercial and industrial electrical systems.
Installation Notes
Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage with a meter before beginning work. Confirm the wall plate opening is sized for 1.60 inch diameter before mounting. Do not exceed the 20-amp circuit rating of this device.
Technical Specifications
- Amperage: 20 amps
- Outlet Type: Single locking flush outlet
- Grade: Industrial Specification Grade
- Strap Material: Nickel-plated brass
- Contact Material: Brass (ground and line)
- Plug Compatibility: Polarized and non-polarized
- Wall Plate Diameter: 1.60 inches
- Weight: 0.93 pounds
- Package Quantity: 10 units
- Certifications: UL listed, CSA approved
- Warranty: Limited lifetime
Standard Information
- Brand: LEVITON MFG CO
- Manufacturer Part Number: 065-02410-000
