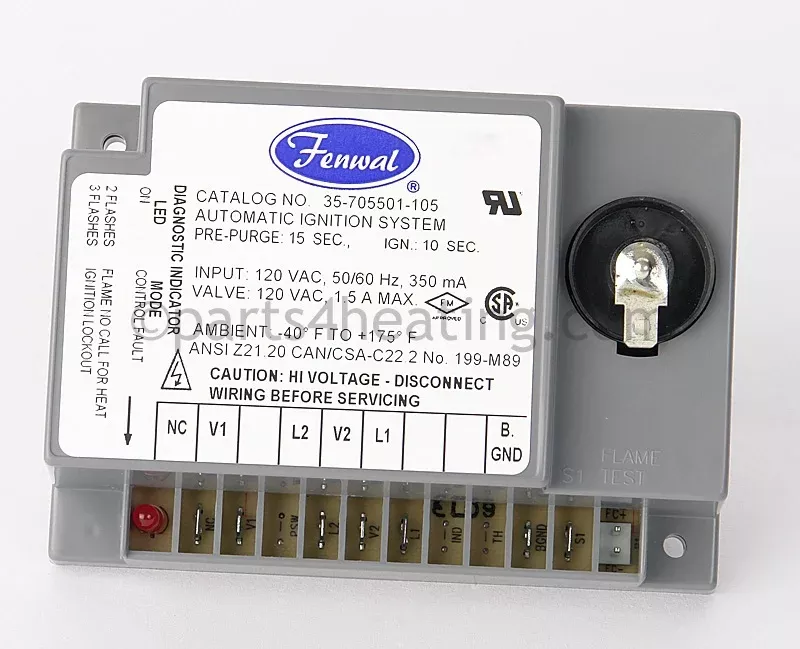

Fenwal 35-705501-105 120 VAC Direct Spark Plastic enclosure ignition control module.Direct replacement for Green Heck blower heater
Technical Specification
SPECIFICATIONS
| Input Power | 102 to 138 VAC, 50/60 Hz |
| Input Current Drain | 350mA@ 120 VAC, 60 Hz |
| Gas Valve Rating | 1.5A@ 120 VAC |
| Operating Temperature | -40F to ힾ, -40C to |
| Flame Sense Voltage | 120 VAC |
| Flame Sense Current | 1.0 microamp minimum |
| Flame Failure Response Time | 0.8 seconds maximum |
| Types of Gas | Natural, LP and manufactured |
| Spark Rate | Line frequency (50/60 Hz) |
| Moisture Resistance | Conformal coated to operate to 95% R.H. |
| Size (LxWxH) | See drawings on Page 8 |
| Weight | Integral stand-offs: 7.1 oz Potted:14.3 oz Case and Cover:10.1oz |
|
CONTROL CONFIGURATION |
|
|
Enclosure Configurations and Wiring Options or Assemblies or Non-Standard Configurations |
Case and Cover Quick Connect (Figure 3) |
|
Number of Ignition Trials, Flame Sense Method and Lock Out Reset Method |
1 try, remote sense Thermostat / power off reset |
|
Pre-Purge Time |
15 seconds |
|
Inter-Purge Time |
None |
|
Trial for Ignition Time(TFI) |
10 seconds |
