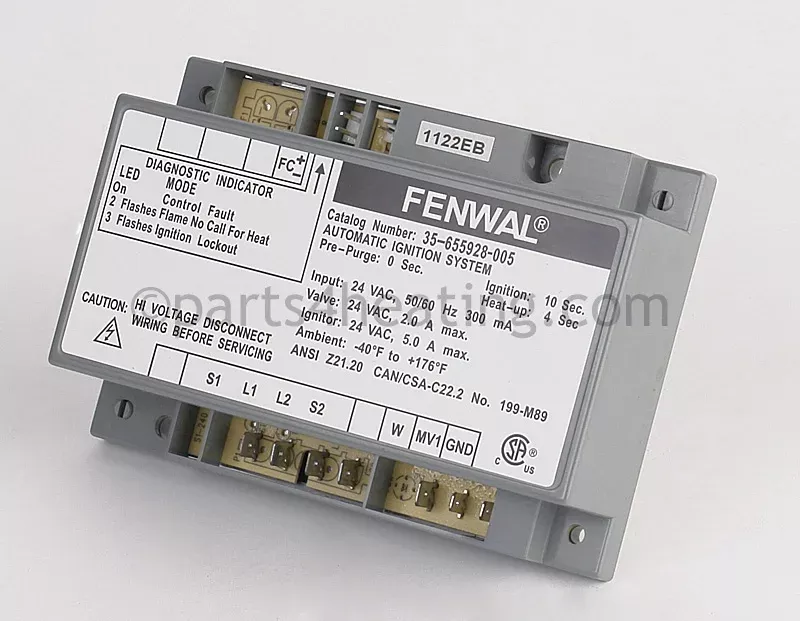

Fenwal 35-655928-005 Ignition Control24 VAC Hot Surface CE/CSA
Technical Specification
SPECIFICATIONS
| INPUT POWER Voltage Current | Control: 18 to 30 VAC 50/60 Hz (Class 2 Transformer) Line: 24, 120 or 240 VAC (L1 & L2 only) 300 mAmax @ 24 VAC with blower and gas valve relay energized (Control only) |
| OUTPUT (CONTACT RATINGS) Gas ValveCombustion Blower (Model 35-66 only)Hot Surface Element | 2.0Amax @ 24VAC, 3.0 FLAmax @ 120VAC (1/4 hp) 1.5 FLAmax @ 240 VAC (1/4 hp)5.0Amax @ 120/240 VAC |
| OPERATING TEMPERATURE | -40 to ힾ deg. F (-40 todeg. C) |
| FLAME SENSITIVITY | 0.7 microamps minimum |
| TYPES OF GAS | Natural, LP, or manufactured |
| ignitor | 24 VAC, 120 VAC, or 240 VAC mini-ignitors and silicon carbide ignitors depending on model |
| ENCLOSURE | Gray (Noryl N-190) |
| MOISTURE RESISTANCE | Conformal coated to operate non-condensing to 95% R.H. Care must be taken to protect module from direct exposure to water |
| SIZE WITH ENCLOSURE | See Figures on Page 7 |
| WEIGHT | 8 oz including cover |
|
