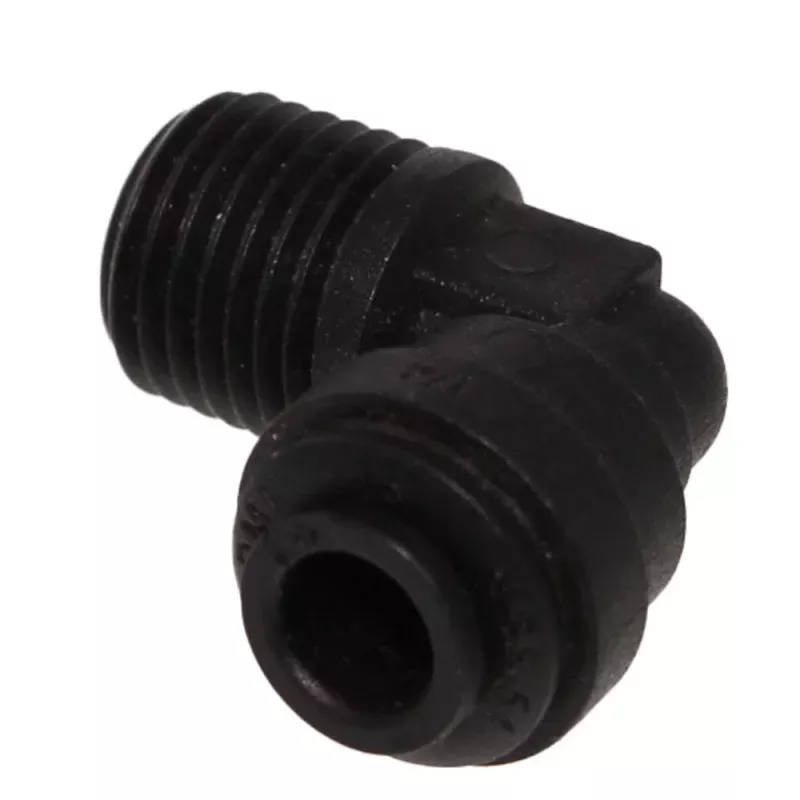

The John Guest fixed elbow makes connecting OD tubing sizes to female NPT threads quick and easy. The stem inserts into John Guest Push-fit fittings to change tubing direction 90 degrees. Manufactured in polypropylene with food grade EDPM O-ring, these fittings were developed for the water purification and beverage dispense markets. They are also suitable for use in agricultural spraying, farm/dairy equipment, chemical dispense, car washing and a variety of other applications.
Features:
- Push-fit Technology creates reliable, leak-free connections
- Used to connect OD tubing sizes to female NPT threads
- Compatible with plastic or copper OD sized tubing
- Connect, disconnect, and reconnect in seconds without tools
- Food Quality and suitable for potable liquids and pure water applications
- Polypropylene body with EDPM O-ring
- UV Stabilized
- Made with lead free materials
Working pressure and temperature:
- Max. 150 psi at 70 F
- Max. 60 psi at 140 F
Note: Not suitable for compressed air and vacuum applications
Polypropylene (PP) fittings are for water only. Material is too soft and seal is EPDM for compressed air applications.
