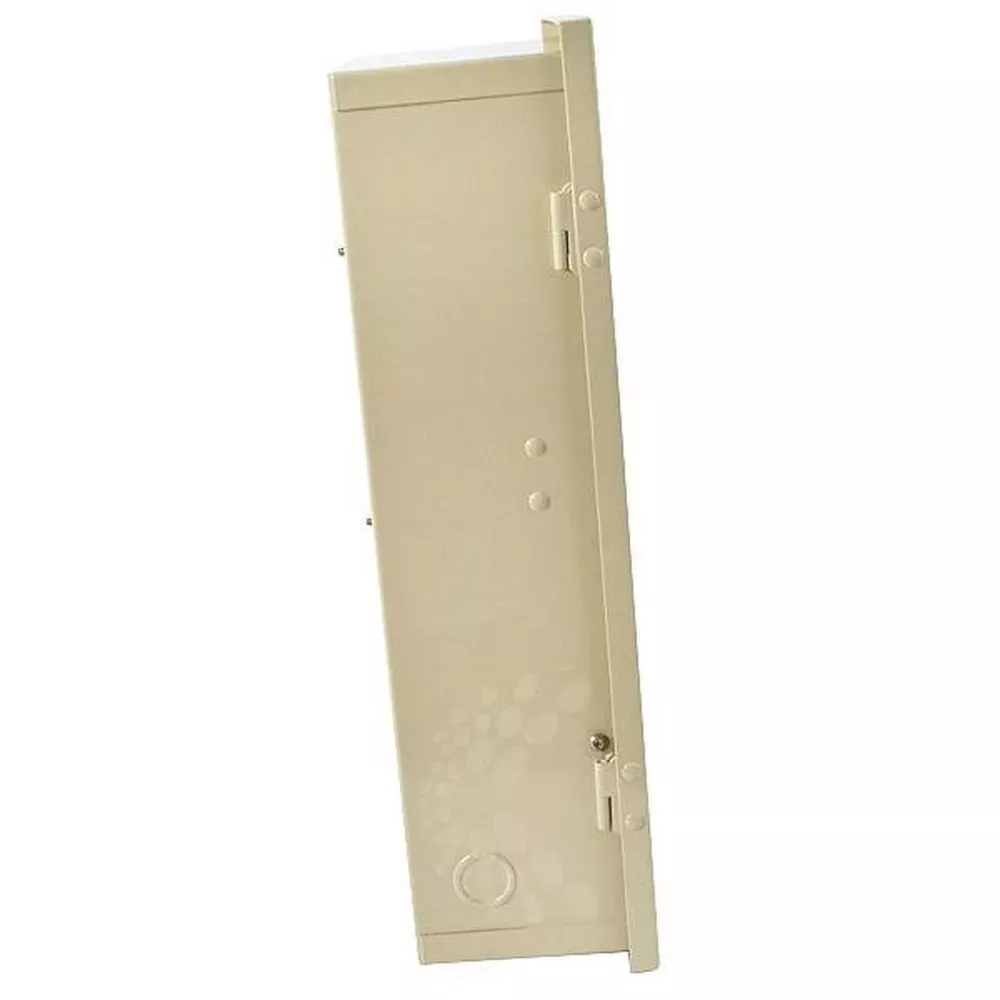

Intermatic T21000 Series 60 Amp Control Center – T21004
- Case: 16-3/4 (42.6 cm) H x 8-7/8 (22.5 cm) W x 4-3/8 (11.1 cm) D. 0.048 steel with electrostatically applied light beige finish.
- Knockouts: Five combination 1/2″ – 3/4″ and three 3/4 – 1 on the bottom, one combination 1/2″ – 3/4″ on the left side, one 3/4-1 on the back and one combination 1-3/4 x 2-3/4 knockout on the right side for mounting switches or GFCI.
- Panel Rating: 60 Amp 120/240 VAC or 120/208 VAC; Single Phase-60 Hz
- Time Switch Rating: 30 Amp Resistive Inductive, Tungsten or 1000 VA pilot duty each pole 120/208/240 VAC; 2 HP (24 FLA) – 120 VAC; 5 HP (28 FLA) – 240 VAC
- Agency Approval: CSA/C-US
