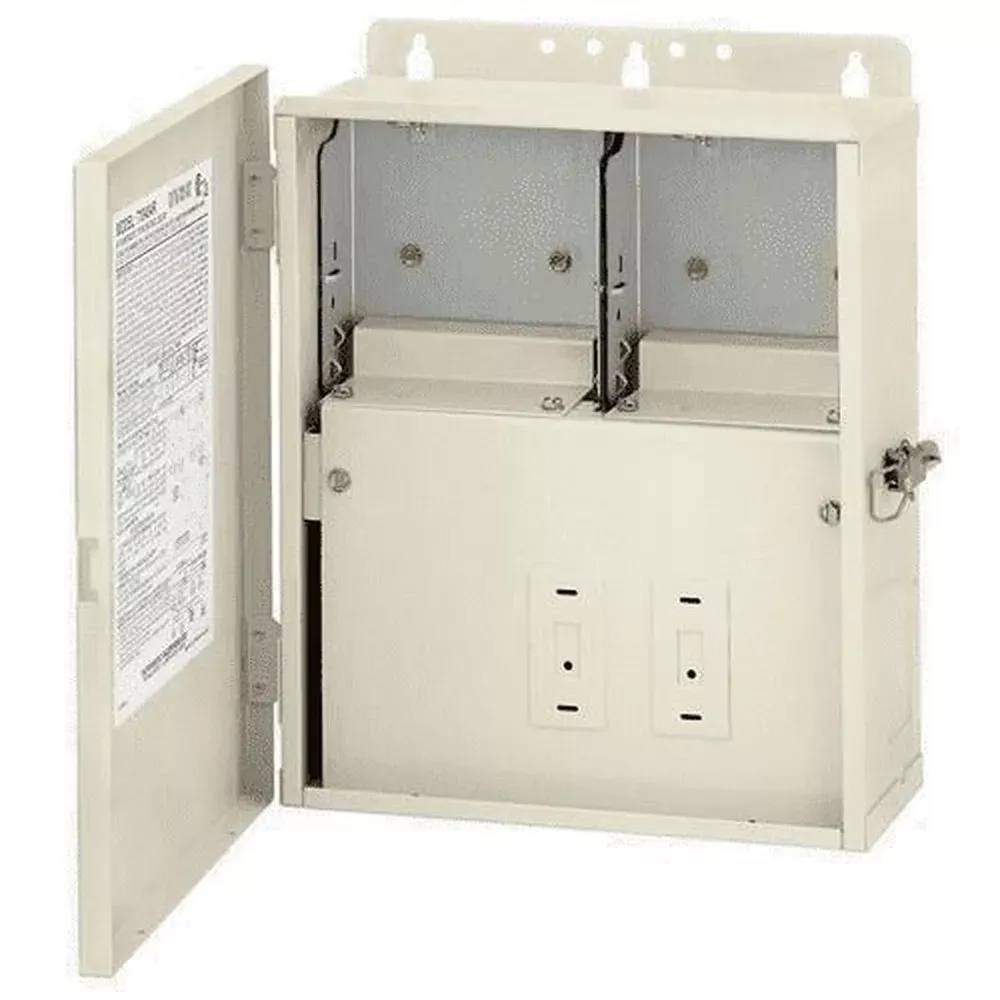

Intermatic Outdoor Enclosure Only (No Timers) – T10000
- Case: 12 (30.5 cm) H x 12 (30.5 cm) W x 4-1/4 (10.8 cm) D, 0.048 steel with electros
- Knockouts: Five combination 1/2″ – 3/4″ and two combination 3/4-1 knockouts on the bottom. One combination 1/2″ – 3/4″ on the left side and one combination 3/4-1 on the back. One knockout 1-3/4 x 2-3/4 on the right side for mounting switches or GFCI.
- Center Rating: 92 Amp per leg, 168 Amp Max. 120-240 VAC or 120-208 VAC single phase – 60 Hz.
- Time Switch Rating: 30 Amp Resistive Inductive, Tungsten or 1000 VA pilot duty each pole 120/208/240 VAC; 2 HP (24 FLA) – 120 VAC; 5 HP (28 FLA) – 240 VAC
- Agency Approval: CSA/C-US
