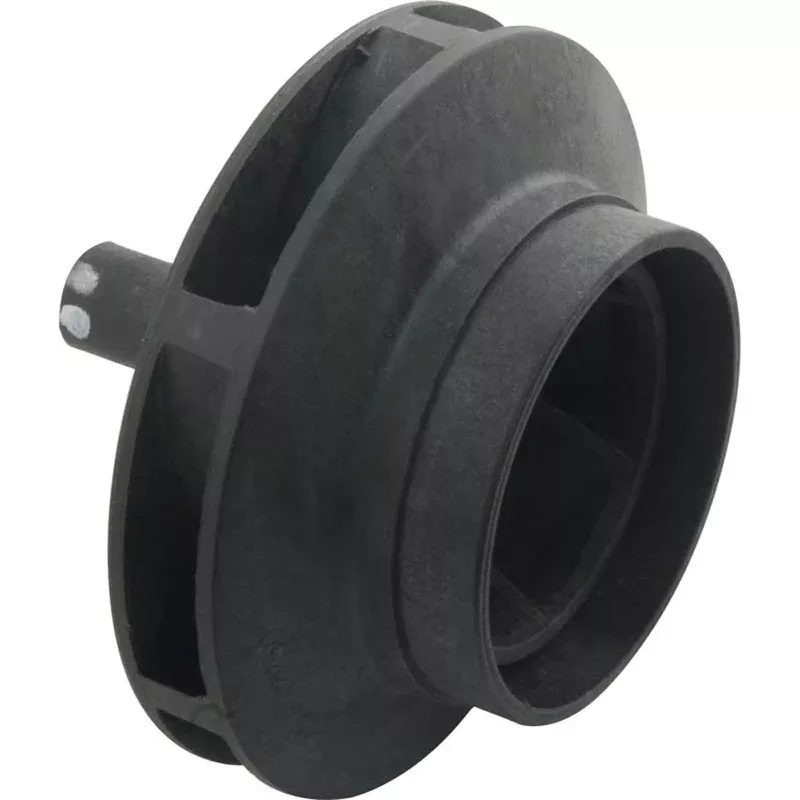

Aqua-Flo by Gecko Alliance XP2E Pump Impeller.
Closed face impeller made for the XP2E spa pump by Aqua-Flo by Gecko Alliance. Rated at 2.5hp, it is used in a XP2E wet end, and must be installed on a 2.5hp (or greater) thru bolt motor.
*Shaft seal sold separately.
Product Specifications:Impeller TypeClosed FaceImpeller Diameter OD4″Vane Width ID7/16″Eye Diameter OD2-5/8″Eye Length11/16″Impeller Width OD5/8″Seal Seat Depth1/8″Shaft Length1-1/2″Shaft Diameter OD9/16″Seal Seat Diameter OD1-1/4″ManufacturerAquaFlo/GeckoPump ApplicationXP2E
In 2012, the manufacturer changed the way Aquaflo pumps are rated. These pumps are now assigned both an operational horsepower (ohp), and a total horsepower (thp) rating. Previous versions of these pumps used only the operational horsepower. If you are replacing an older Aquaflo pump, be sure to match the operational hp rating rather than the total hp.
