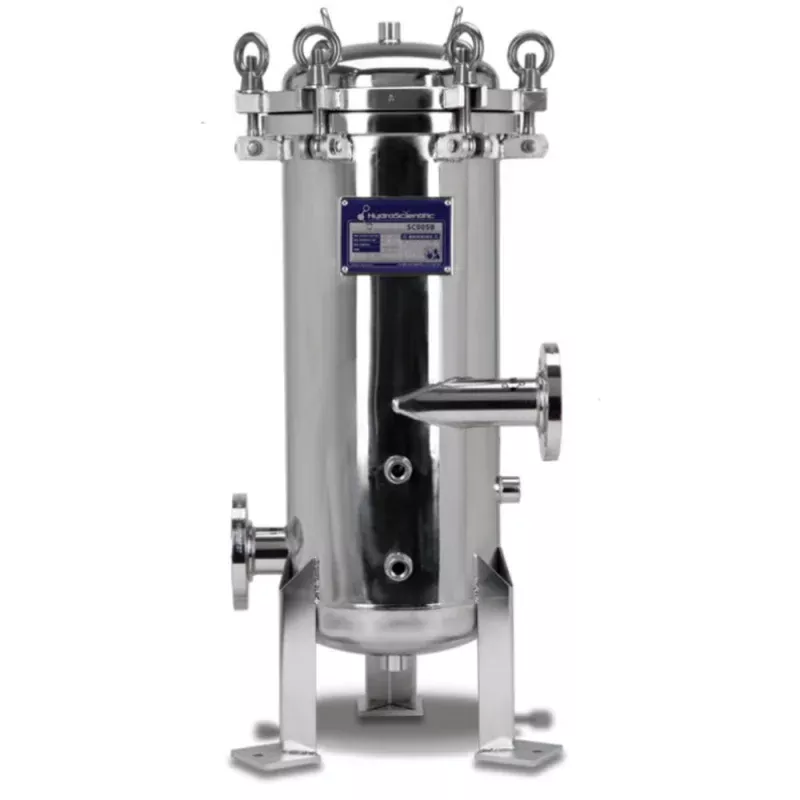

ThisHydronix Sciclone SC90SB Swing Bolt 90 Single Jumbo Filter Housingprovides an exceptional performance housing design that helps separate dense solids prior to water passing through the filter cartridge. The Sciclonic design delivers extended filter life, low cost operation, reduced maintenance costs, and increased dirt holding capacity.
Features:
- Sciclonic Water Flow Design
- Swing bolt closure for quick and secure filter change
- Heavy duty 304 Stainless Steel for durability
- Radial Flow Entry
- Accepts jumbo style cartridges
- NSF/ANSI/CAN 61 & NSF/ANSI 372 certified
Applications:
- Residential, Commercial, Industrial and Municipal
- Cooling Tower Filtration
- Whole House Filtration
- Process Water
- Well Water
- Small Community Compliance
- Industrial Waste Water Treatment
Materials of Construction:
- Housing Shell:304 Stainless Steel
- Swing Bolt Lid Closure:Zinc Plated Steel
- Vent and Drain Plugs:304 Stainless Steel
- Heavy Duty Mounting Legs:304 Stainless Steel
- O-Ring/Gasket:EPDM – FDA Grade (Viton, Silicone and EPR Options)
Operational Data:
- Max Working Pressure:150 psi at 300 Deg. F (10.3 bar at 149 Deg. C)
- Max Operating Temperature:300 Deg. F (149 Deg. C)
