The Hayward MaxFlo XE is an ultra-high efficiency pool pump that delivers real energy savings at a price well below a full variable-speed unit. It offers up to six selectable speeds so you can dial in the right flow for filtering, cleaning, or features, and an easy-access control toggles between speeds at the touch of a button. Efficiency exceeds Department of Energy benchmarks and even beats many competing variable-speed pumps, so it is an affordable way to bring any new or existing pool into DOE compliance. Dual-voltage capability and a compact body with standard 1.5-inch by 2-inch unions make installation simple, with no extra equipment required.

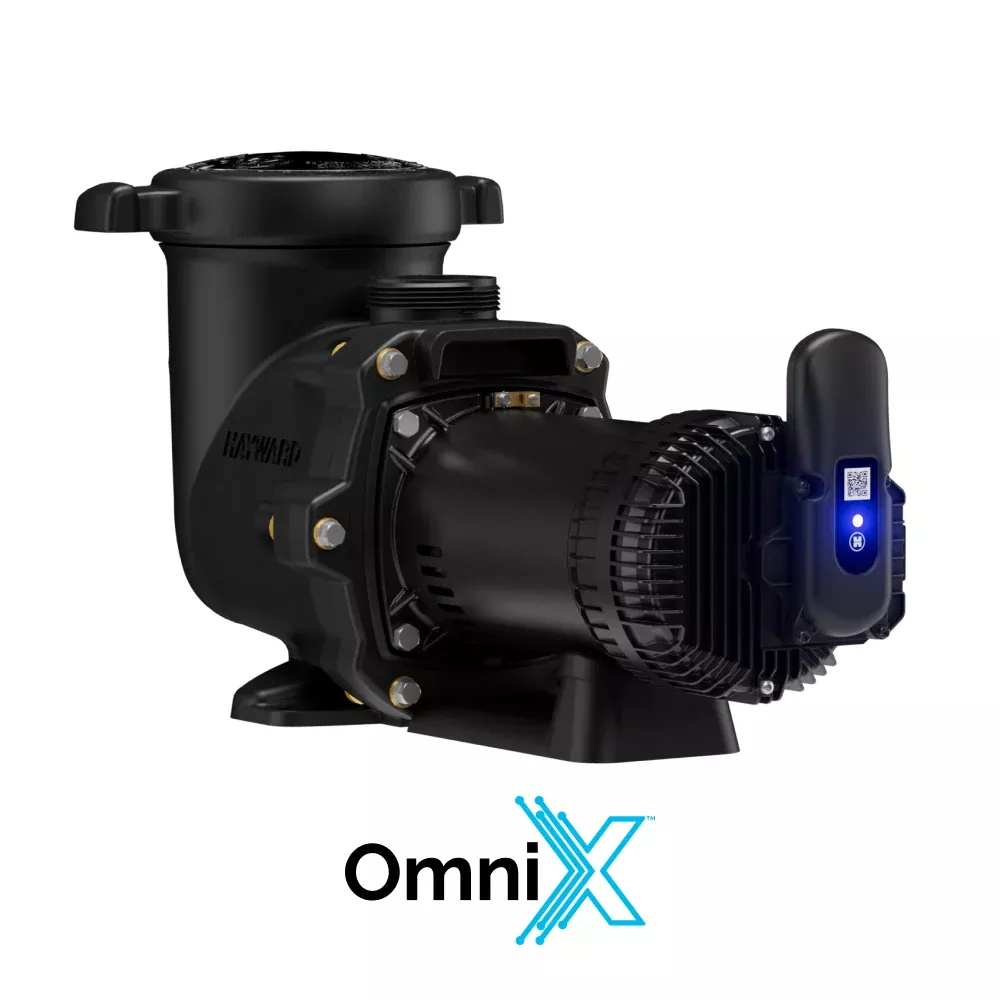

Note: Hayward has succeeded this model with the newer MaxFlo VS with OmniX (W3VSP23415). This XE version remains available while current stock lasts.
Features
- Ultra-high efficiency that exceeds DOE benchmarks
- Up to six selectable speeds for flexible, economical operation
- Easy-access control toggles between speeds at the touch of a button
- Dual-voltage capability (230V/115V) for versatile installation
- Compact body with standard 1.5 inch by 2 inch unions for simple installation
- Meets Department of Energy efficiency regulations
Specifications
- Part Number: W3SP2310X15XE
- Type: Multi-speed pool pump (up to 6 speeds)
- Total HP: 1.65 HP
- Installation: In-ground
- Motor: ODP, single phase, multi-speed
- Voltage: 230 / 115V at 60 Hz
- WEF: 9.7
- Connections: 1.5 inch by 2 inch unions
- DOE Compliant: Yes
- Shipping Dimensions: 13.4 in x 9.9 in x 31 in
- Shipping Weight: 36.5 lb
- Warranty: 1 year parts
