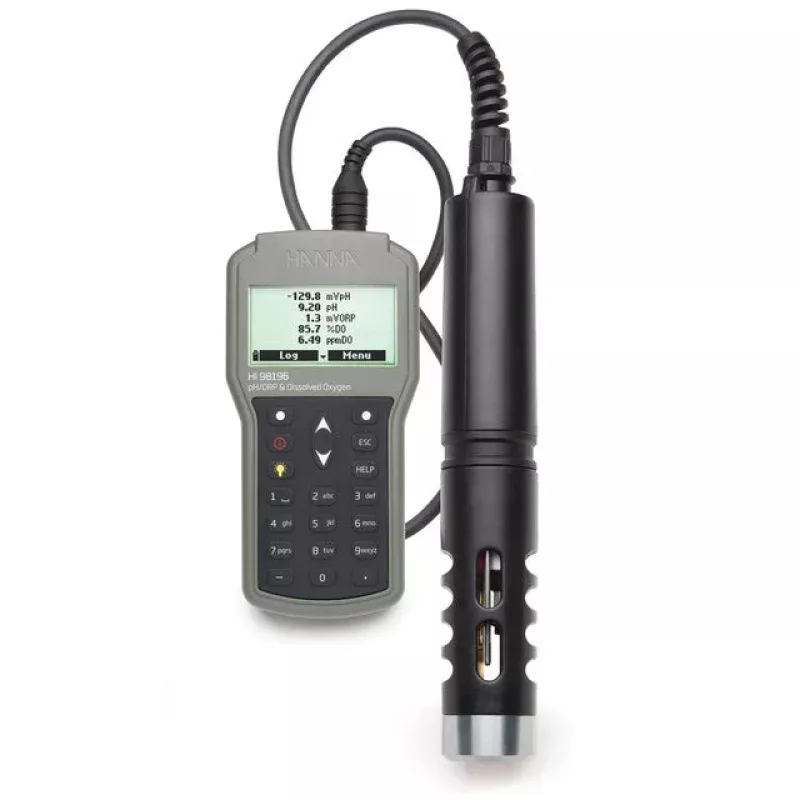

The HI98196 Waterproof Multiparameter Meter is engineered for comprehensive water quality analysis in demanding environments. This portable system offers precision measurement of pH, ORP, dissolved oxygen, and temperature via a digital probe with field-replaceable sensors. Designed for ease of use, reliable performance, and long battery life, the HI98196 is ideal for environmental monitoring, wastewater testing, and industrial water treatment.
Features at a Glance
Simultaneous Multi-Parameter Display View up to 9 water quality parameters at once on a large, backlit graphic LCD with intuitive navigation.
Waterproof Durability Meter features IP67 protection; probe is IP68-rated for continuous submersion.
Digital Quick Connect Probe Secure, waterproof DIN-style connector ensures stable signal transmission and fast setup.
Replaceable, Color-Coded Sensors Easily swap sensors in the field using screw-type connectors, with color indicators for hassle-free installation.
Quick & Standard Calibration Single-point quick calibration or full pH/conductivity calibration using standard or custom buffers and solutions.
GLP Compliance Stores calibration data with time/date stamps for traceable, audit-ready reporting.
Massive Data Logging Log up to 45,000 readings automatically or on demand, with flexible interval settings.
USB Connectivity Transfer logged data directly to your PC via USB with HI9298194 software.
Long Battery Life Get up to 360 hours of operation on four standard AA batteriesperfect for extended fieldwork.
Rugged Transport Case Includes a thermoformed carrying case with custom compartments for the meter, probe, sensors, and accessories.
On-Screen Features
Setup Screen
Easily configure your meters time, date, temperature unit, and language preferences for a fully personalized user experience.
Quick Calibration
Save time with one-touch Quick Calibration for pH, conductivity, and dissolved oxygenensuring fast, accurate field results.
HI7698196 Multiparameter Probe
Designed for use with the HI98196, this probe includes auto-sensor recognition, color-coded field-replaceable sensors, and rugged waterproof construction. With available cable lengths of 4m, 10m, 20m, and 40m, its built for demanding field environments and flexible deployment.
Color Coded Sensors
Field-replaceable with screw-type connectors for quick identification and setup.
Quick Connect
DIN-style waterproof connector ensures fast and secure connection to the meter.
Quick Calibration
Perform fast, one-point calibration for pH and conductivity simultaneously.
Color-Coded, Field-Replaceable Sensors
| Sensor Model | Function |
|---|---|
| HI7698194-0 | Double ceramic junction pH sensor |
| HI7698194-1 | Combination pH and ORP sensor with platinum pin |
| HI7698194-3 | Four-ring stainless steel conductivity sensor |
Rugged Carrying Case
The HI98196 meter, probe, and accessories are packaged in a durable carrying case built to endure field conditions. A thermoformed interior securely holds each component in place, offering protection and long-lasting reliability for transport and storage.
