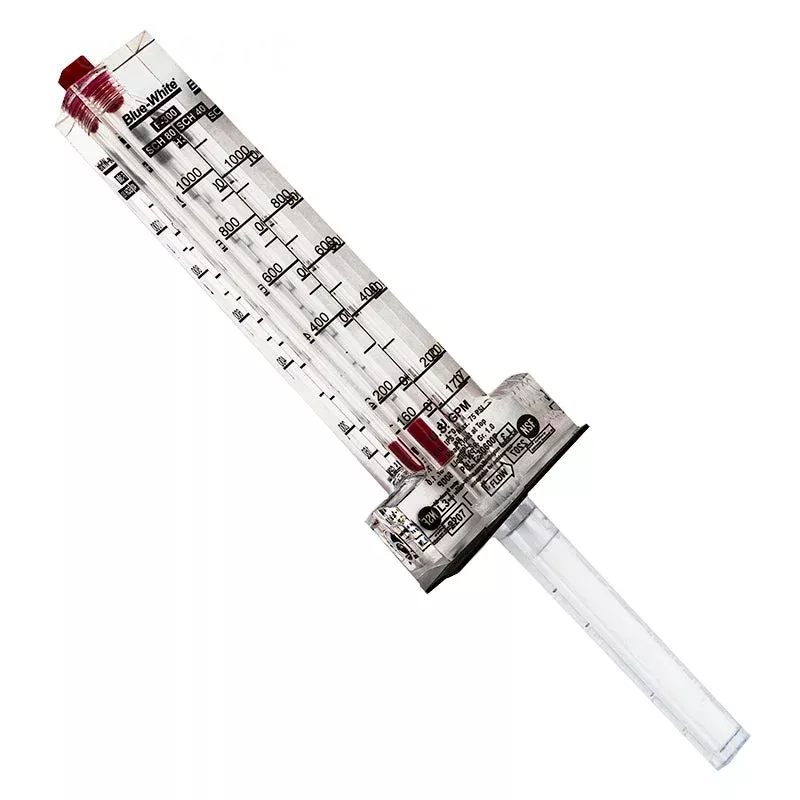

Blue-White F-300 Series Flowmeter for 6″ Pipe – 170 to 1,100 GPM (Schedule 40)
The Blue-White F-30600P is a professional-grade horizontal flowmeter built to deliver accurate, real-time GPM readings on 6″ commercial pool, irrigation, and industrial water lines. Its impact-resistant acrylic body, pitot-tube sensing design, and dual-scale screen-printed face make it an easy, long-lasting upgrade for any operator who needs reliable flow data at a glance.
Key Features:
- Dual-Scale Readout: Schedule 40 and Schedule 80 scales are screen printed on both sides of the meter body, so you can read flow clearly from either direction of approach.
- Pitot Tube Pickup: The calibrated pitot-tube and hard-edged float design allows simple installation on existing pipe with minimal flow disruption.
- Impact-Resistant Acrylic Body: Machined acrylic construction is rated for outdoor use and direct sunlight exposure, resisting UV fade and mechanical shock.
- Permanent Screen-Printed Scales: Graduations will not fade, peel, or wear off like adhesive labels, ensuring lifelong legibility.
- Stainless Steel Pipe Clamp: 316 stainless hardware provides corrosion resistance in pool rooms and chemical-treatment environments.
Technical Specifications:
- Part Number (MPN): F-30600P
- Pipe Size: 6″ IPS PVC
- Flow Range (SCH 40): 170 to 1,100 GPM
- Flow Range (SCH 80): 160 to 1,000 GPM
- Max Working Pressure: 75 psi @ 70 degrees F
- Max Fluid Temperature: 190 degrees F @ 0 psi
- Body Material: Machined Acrylic
- Mounting Orientation: Horizontal Pipe Only
