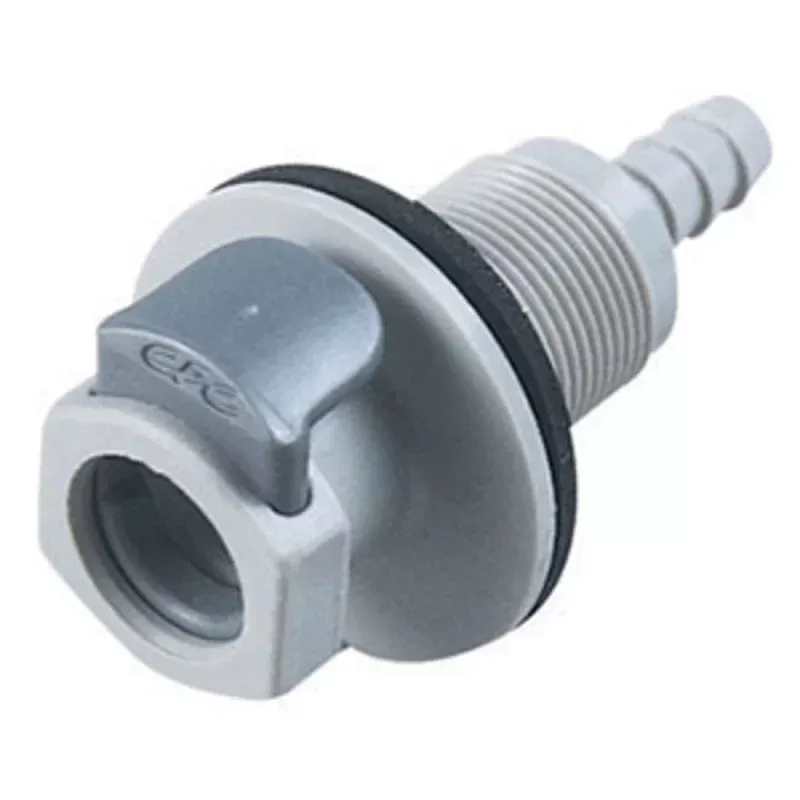

9/32″ flow EFC12 Series couplings utilize a high efficiency valve design to provide a greater flow capacity than other couplings its size. The EFC12 Series is constructed out of chemically resistant polypropylene and mates with most APC couplings.
Specifications:
- Material: Polypropylene
- Color: Gray
- Mounting Option: Panel Mount
- Seal Option: EPDM
- Valve Spring: 316 Stainless Steel
- Pressure Range: Vacuum to 105 psi, 7.2 bar
- Temperature Range: 32F to 160F
