Product Description

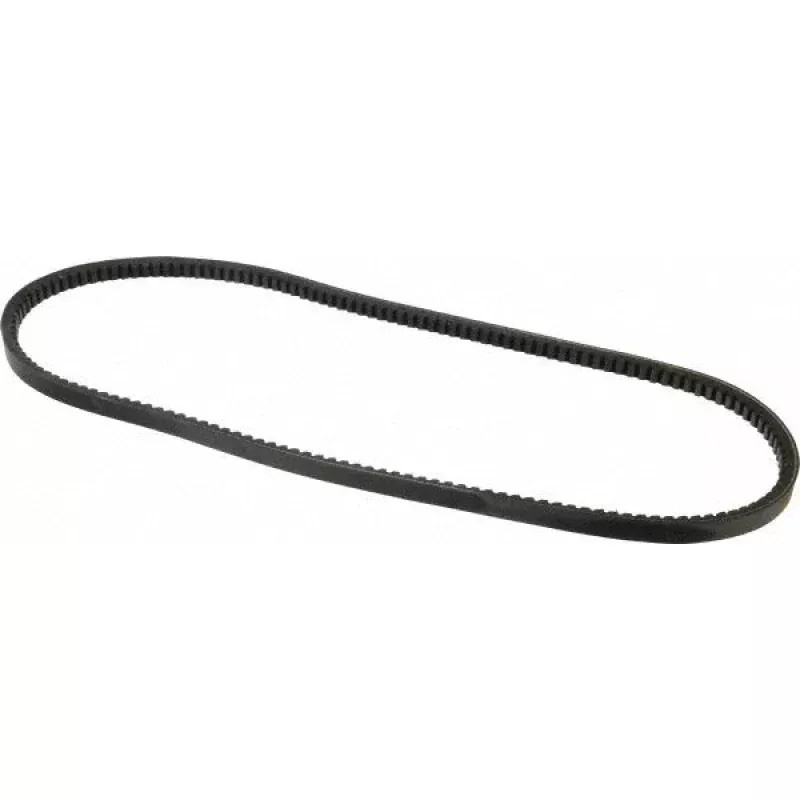

The CONTINENTAL CONTITECH 20042855 is a fractional horsepower cogged V-belt designed for light-duty power transmission applications in HVAC, agricultural, and general industrial equipment. Built from high traction rubber, this belt features a cogged construction that reduces bending resistance, runs cooler, and improves efficiency over standard wrapped belts. It carries a 5L cross-section with a 50-inch outside length and a 48.80-inch internal length. Licensed HVAC technicians and equipment service pros commonly install this belt on fan drives, blower assemblies, and motor-to-shaft drive systems.
The 5L500 belt is suited for residential and light commercial applications where fractional horsepower drives are standard. Typical install scenarios include condenser fan drives, air handler blower sections, and small pump drives. The cogged profile allows use on smaller-diameter pulleys without the flex fatigue that affects solid-back belts. This belt is rated for operating temperatures from -40 degrees F to 284 degrees F (equivalent to -40 C to 140 C), making it viable in both cold-climate and high-heat equipment environments.
Key Features
- Cogged construction reduces heat buildup and bending resistance on small-diameter sheaves
- High traction rubber compound for positive grip and reduced slippage
- Abrasion resistant and ozone resistant for extended service life in outdoor and mechanical environments
- 5L fractional horsepower section 50-inch outside length, 48.80-inch internal length
- Wide operating temperature range: -40 degrees C to 140 degrees C
Compatibility
Designed as a direct replacement for 5L500 fractional horsepower V-belt applications. Fits any standard 5L-section sheave or pulley groove profile used in residential and light commercial HVAC, fan, and blower drive systems.
Installation Notes
Belt replacement is a common HVAC and mechanical service task performed by licensed technicians or qualified service personnel. Always disconnect and lock out power to the unit before removing or installing drive belts. Adjust motor mounting position or tensioner to relieve belt tension before removal, and verify proper tension after installation do not pry belts onto sheaves with tools, as this can damage the belt cord structure. Inspect sheave grooves for wear or misalignment before installing a new belt.
Technical Specifications
- Belt Section: 5L (Fractional Horsepower)
- Belt Style: Cogged V-Belt
- Outside Length: 50 inches
- Internal Length: 48.80 inches
- Belt Number: 5L500
- Material: High Traction Rubber
- Maximum Working Temperature: 140 degrees C (284 degrees F)
- Minimum Working Temperature: -40 degrees C (-40 degrees F)
- Resistance Features: Abrasion Resistant, Ozone Resistant
- Weight: 0.5 pounds
Standard Information
- Brand: CONTINENTAL CONTITECH
- Manufacturer Part Number: 20042855
