Product Description

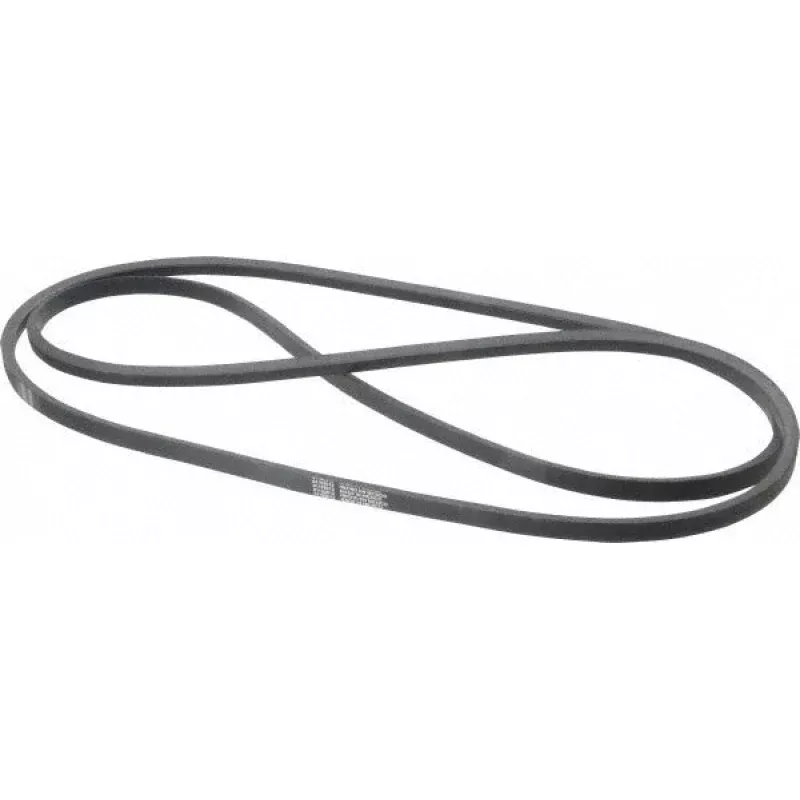

The CONTINENTAL CONTITECH 20042013 is a Section A V-belt designed for industrial and HVAC drive applications requiring reliable power transmission. Constructed from Wingprene rubber-impregnated fabric, this belt delivers resistance to heat and oil, making it suitable for demanding mechanical environments. It carries an outside length of 90.2 inches and an internal length of 89.30 inches, conforming to DIN 2215 and DIN 7753 standards. The HY-T Matchmaker style designation indicates this belt is engineered for matched-set drive systems where consistent tension across multiple belts is critical. Licensed HVAC technicians and industrial mechanics are the typical installers for this product type.
This V-belt is suited for use in belt-drive systems found in air handling units, blowers, compressors, pumps, and general industrial machinery. The Section A profile fits standard A-section sheaves and pulleys. The belt performs across a working temperature range of -40 degrees C to 140 degrees C, making it appropriate for both indoor mechanical rooms and outdoor equipment exposed to temperature extremes. Applications include commercial HVAC belt-drive fan assemblies, agricultural equipment, and light industrial drive trains where an A88-equivalent belt is specified.
Key Features
- Wingprene rubber-impregnated fabric construction for heat and oil resistance
- Section A profile compatible with standard A-section sheaves and drive systems
- 90.2 inch outside length with 89.30 inch internal length for accurate sizing
- Operating temperature range of -40 degrees C to 140 degrees C
- Meets DIN 2215 and DIN 7753 standards for V-belt dimensions and performance
- HY-T Matchmaker style engineered for matched-set multi-belt drive configurations
Compatibility
Designed as an OEM-style replacement for Section A V-belt drive systems specifying an A88 belt designation. Fits standard A-section sheaves and pulleys in HVAC, industrial, and mechanical drive applications.
Installation Notes
V-belt replacement is typically performed by licensed HVAC technicians or qualified mechanical tradespeople. Always de-energize and lock out the equipment at the disconnect before removing or installing drive belts. Use a belt tension gauge to set proper deflection per the equipment manufacturer’s specifications, and inspect sheaves for wear or misalignment before installing a new belt. Never pry a belt onto a sheave or use belt dressing compounds on rubber V-belts, as this can degrade the belt material and reduce service life.
Technical Specifications
- Belt Section: A
- Belt Number: A88
- Style: HY-T Matchmaker
- Outside Length: 90.2 inches
- Internal Length: 89.30 inches
- Material: Wingprene Rubber-Impregnated Fabric
- Resistance Features: Heat Resistant, Oil-Resistant
- Maximum Working Temperature: 140 degrees C
- Minimum Working Temperature: -40 degrees C
- Standards: DIN 2215, DIN 7753
- Weight: 0.6 pounds
- UNSPSC Code: 26111800
Standard Information
- Brand: CONTINENTAL CONTITECH
- Manufacturer Part Number: 20042013
