Product Description

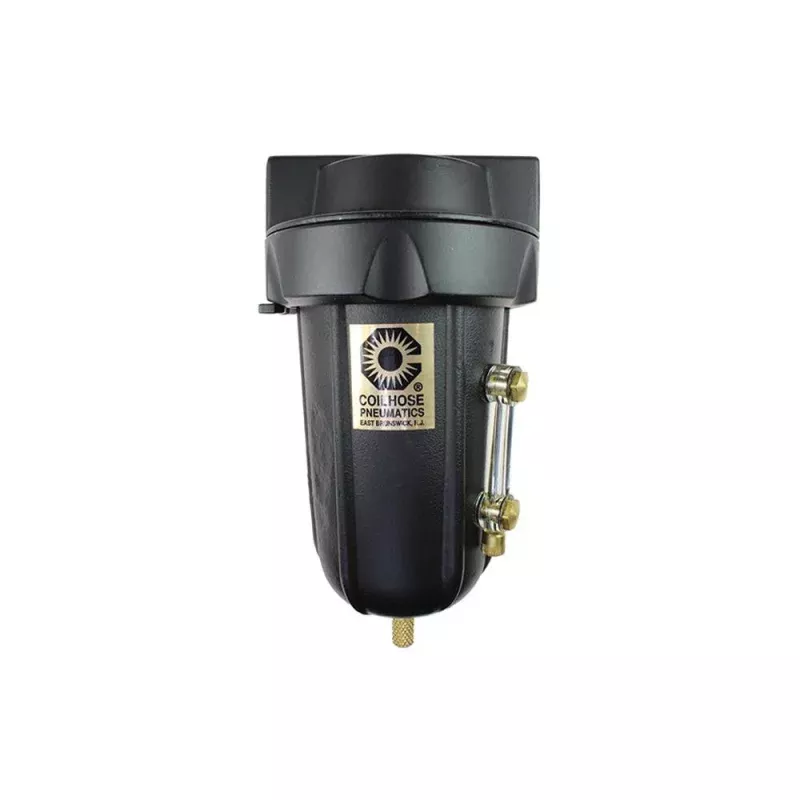

The COILHOSE PNEUMATICS 8826MD is a heavy-duty compressed air filter designed to remove contaminants from compressed air lines in industrial and commercial pneumatic systems. Built around a sintered bronze filter media with a 40-micron rating, this unit traps particulates before they reach downstream tools, valves, and equipment. The cast aluminum body and aluminum bowl provide durability in demanding shop and production environments. An automatic drain eliminates the need for manual bowl draining, reducing maintenance intervals. The 3/4-inch NPT port accommodates high-flow applications. Licensed industrial mechanics and pneumatic system technicians are the typical installers for this class of filter.
The 8826MD is suited for use in compressed air distribution systems serving production machinery, pneumatic tooling, spray finishing equipment, and general shop air supply lines. Its 23-ounce bowl capacity and automatic drain make it appropriate for systems that generate moderate to high condensate volumes. The sight glass allows quick visual confirmation of bowl level and filter condition without disassembly. This filter belongs to the Series 88 heavy-duty line, intended for applications where standard-duty filters are undersized for the operating demands.
Key Features
- 40-micron sintered bronze filter media removes particulates from compressed air supply
- Automatic drain eliminates manual bowl servicing between maintenance cycles
- Sight glass provides visual bowl-level and condition monitoring without disassembly
- 23-ounce aluminum bowl capacity handles high condensate volumes
- 3/4-inch NPT end connections for direct inline installation on standard threaded pipe
- Cast aluminum body construction for durability in industrial environments
Compatibility
Designed as an OEM-style inline replacement or new-installation compressed air filter for 3/4-inch NPT compressed air distribution systems requiring heavy-duty particulate filtration.
Installation Notes
Installation is performed by licensed industrial mechanics or qualified pneumatic system technicians. Depressurize the compressed air line completely and lock out the air supply before removing or installing any inline filter. Confirm NPT thread direction and apply appropriate thread sealant per shop standards before making up the connection. Verify automatic drain operation and sight glass integrity after returning the system to pressure.
Technical Specifications
- Port Size: 3/4 inch NPT
- End Connections: NPT
- Micron Rating: 40 microns
- Drain Type: Automatic
- Bowl Capacity: 23 oz
- Filter Media Material: Sintered Bronze
- Body Material: Cast Aluminum
- Bowl Material: Aluminum
- Sight Glass: Included
- Height: 9 inches
- Weight: 6 pounds
- Series: 88
Standard Information
- Brand: COILHOSE PNEUMATICS
- Manufacturer Part Number: 8826MD
