Product Description

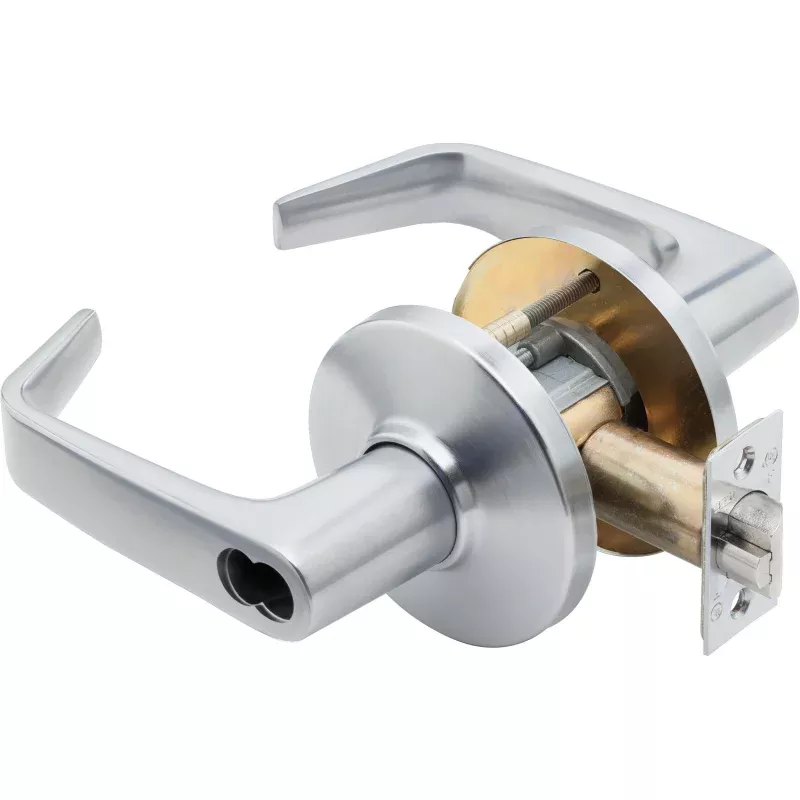

The BEST 9K37T15DS3626 is a 9K Series dormitory-function lever lockset designed for commercial and institutional door hardware applications. It features a 2-3/4 inch backset, a 7-pin interchangeable core cylinder, and a 15 lever trim paired with a D-style rose. The unit ships less core, making it compatible with BEST interchangeable core systems. Finished in satin chrome, it is built for high-traffic environments where durability and key control are critical. Licensed locksmiths, security hardware specialists, and commercial door hardware installers are the primary trades for this product.
The 9K37T15DS3626 is intended for dormitory-function applications, where the outside lever is always locked and can only be opened with a key, while the inside lever allows free egress at all times. This function is standard in student housing, assisted living facilities, and similar institutional settings. The included ANSI strike is compatible with standard commercial door preps. The less-core configuration allows facilities managers to specify and insert their existing BEST interchangeable core cylinder, supporting large-scale masterkey programs across a campus or building portfolio.
Key Features
- Dormitory lever function: outside lever locked at all times, inside lever provides free egress
- 2-3/4 inch backset fits standard commercial door preparations
- 7-pin interchangeable core cylinder for high-security key control
- Ships less core, compatible with BEST interchangeable core systems
- 15 lever with D rose in satin chrome finish for institutional aesthetics
- Includes ANSI strike for standard commercial door frame compatibility
Compatibility
Designed as an OEM-style fit within the BEST 9K Series product family for commercial and institutional doors utilizing BEST interchangeable core cylinders. No additional specific model compatibility data was provided in the product input.
Installation Notes
Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with ANSI/BHMA standards for cylindrical locksets. Ensure the door is properly prepped to the specified backset and that the latch bore and strike are aligned before securing hardware. Because this unit ships less core, the appropriate BEST interchangeable core must be sourced and inserted before the lockset is placed into service. Verify function and free egress operation on the inside lever before closing out the job.
Technical Specifications
- Series: 9K
- Function: Dormitory
- Backset: 2-3/4 inches
- Pin Count: 7
- Lever Style: 15
- Rose Style: D
- Finish: Satin Chrome
- Core: Less Core (interchangeable core ready)
- Strike: ANSI Strike included
- Package Length: 8.3 inches
- Package Width: 5.9 inches
- Package Height: 4.2 inches
- Weight: 4.3 pounds
- Sold As: Each
Standard Information
- Brand: BEST
- Manufacturer Part Number: 9K37T15DS3626
