Product Description

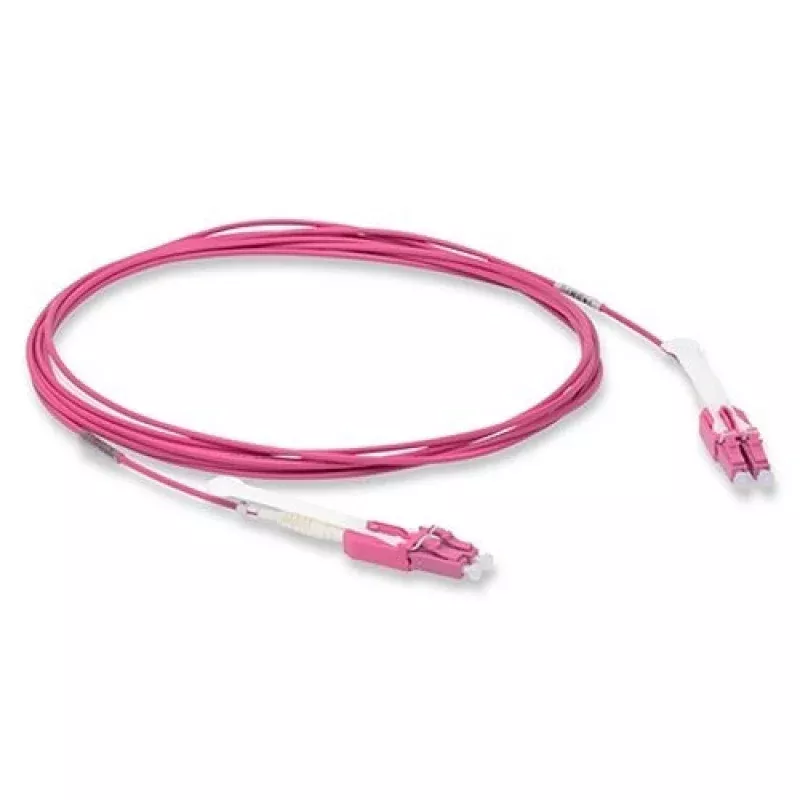

The BELDEN INC. FP4LULU02M6 is an OM4 multimode fiber optic patch cable terminated with LC duplex connectors on both ends. It carries two fibers in a duplex configuration and measures 6 meters in length. OM4 multimode fiber supports high-bandwidth applications including 10G, 40G, and 100G Ethernet over appropriate distances. This cable is used by low-voltage installers, data cabling contractors, and network technicians working in structured cabling environments.
This patch cable is suited for use in data centers, server rooms, telecommunications closets, and enterprise network installations. The LC duplex connector format is one of the most widely deployed small-form-factor fiber connector types in modern structured cabling systems. At 6 meters, this cable is appropriate for rack-to-rack or equipment-to-patch-panel runs within a single cabinet row or adjacent cabinets.
Key Features
- OM4 multimode fiber core supports 10G, 40G, and 100G transmission at rated distances
- LC duplex connectors on both ends for compatibility with current small-form-factor transceiver ports
- Duplex 2-fiber construction handles simultaneous transmit and receive on a single cable assembly
- 6-meter length suits intra-rack and inter-rack horizontal runs
- Factory-terminated assembly eliminates field termination and associated polishing variables
Compatibility
Designed as an OEM-style replacement or direct-install fiber patch cable for structured cabling systems requiring OM4 multimode LC duplex connections.
Installation Notes
Installation should be performed by a qualified low-voltage cabling technician familiar with fiber handling practices. Avoid bending the cable beyond its minimum bend radius and do not cinch cable ties tightly around fiber assemblies. Clean all connector end faces with an appropriate fiber optic cleaning tool before mating. Installations in commercial buildings should conform to applicable sections of ANSI/TIA-568 structured cabling standards.
Technical Specifications
- Fiber Type: OM4 Multimode
- Connector Type: LC Duplex
- Number of Fibers: 2
- Cable Length: 6 meters
- Unit of Measure: EA
- Quantity Per Unit: 1
Standard Information
- Brand: BELDEN INC.
- Manufacturer Part Number: FP4LULU02M6
